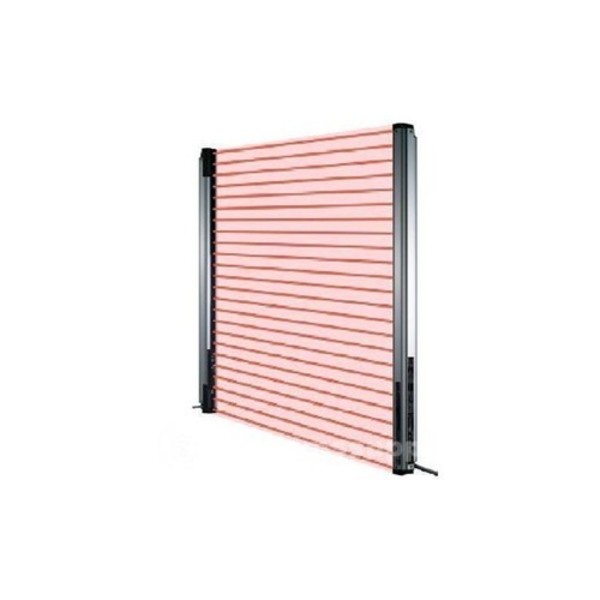

PANASONIC SF2B-A32-N TYPE 2 LIGHT CURTAIN - ARM/FOOT PROTECTION
Starting At: $2,067.00
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: SF2B-A32-N
IMS Product Code: 1972023
Packaging: Sold Individually
Description:
Panasonic SF2B-A32-N Type 2 Light Curtain - Arm/Foot Protection, 40mm Beam Pitch, 1272mm Height, 0.2-13 M Range, SF2B Series Safety Light Curtain, Type 2 Safety Solution 40mm Beam Pitch, NPN Output 32 Light Channels, 1272mm of Protective Height, 0.2 to 13 Meter Distance, Requires SF2B Hookup Cables (not included)
Specifications:
- Series: SF2B Ver.2
- Light Curtain Type & Style: Type 2-Slim
- Protection Type: Arm/Foot
- Number of Beams: 32 beam channels
- Beam Pitch: 40mm
- Minimum Detectable Object: Ø 47mm
- Protection Height: 1272mm
- Operation Range: 2 to 13 meters
- Features: Slim body 28W x 24D, 2 sub-units can be connected in series
- Light Source: Infrared LED
- Effective Aperture: ±5° or less
- Safety Rated Control Outputs: NPN x 2
- Safety Control Output Response Time: OFF response: 15 ms or less, ON response: 40 to 60 ms
- Voltage Details: 24VDC ±15% Ripple P-P 10% or less
- Temperature: –10 to +55 °C
- Protection: IP65 (IP67 IEC)
- Construction: Aluminum enclosure, zinc die-cast edges, Polycarbonate-polyester resin inner case, PBT cap
- Connection Type: QD or Cabled
- Connection Type Detail: Select SF2B Bottom Cap Style
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
