CONTRINEX MGI-05A-0232-NMS-149 MEASURING LIGHT GRID
Starting At: $1,127.60
Quick Overview
Manufactured By: CONTRINEX
Manufacturer Part Number: MGI-05A-0232-NMS-149
IMS Product Code: 1784476
Packaging: Sold Individually
Description:

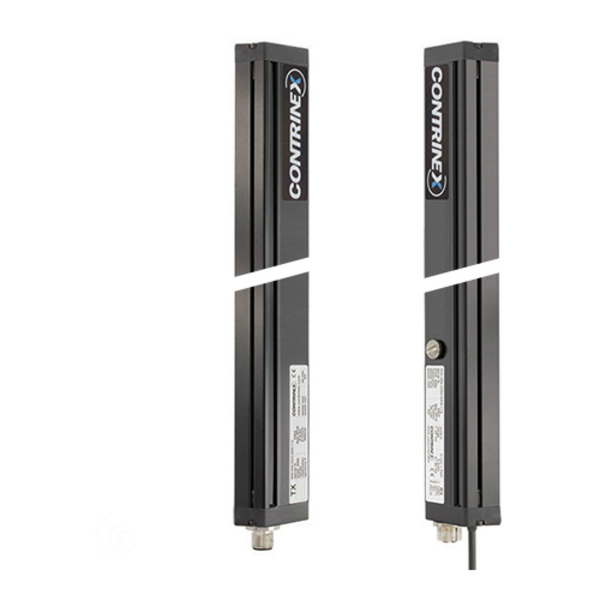

Contrinex MGI-05A-0232-NMS-149 5 mm Resolution Measuring Light Grid
Specifications
| Operating principle | Measurement grid |
|---|---|
| Sensing range typ. Max. | 300…4000 mm |
| Light source | Led, infrared |
| Housing size [mm] | 40 x 20.5 (Light Grid) |
| Light grid height [mm] | 260 mm |
| Sensitivity adjustment | No |
| Polarity | Analog |
| Output | 4…20 mA + 0...10 V |
| Interface | Standard output |
| Connection | PUR, 0.3 m + M12 4-pin |
| Supply voltage | 24 VDC ± 20 % |
| Housing material | Aluminium |
| Temperature range | -5...50 °C |
| Enclosure rating (IP) | IP 65 |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
