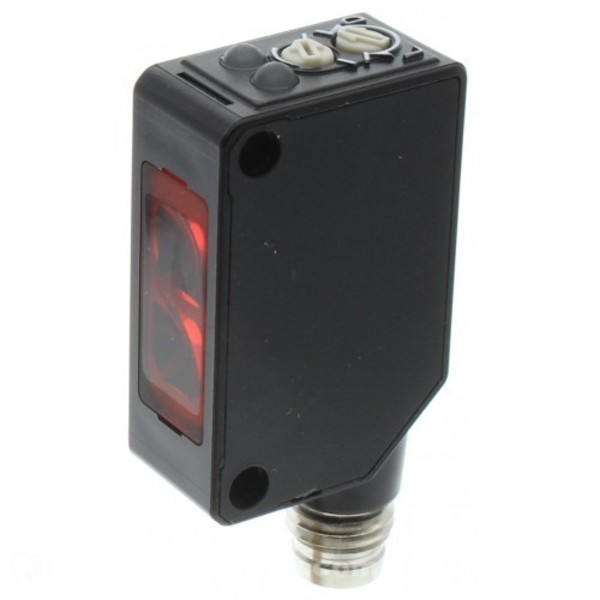

OPTEX Z3D-100CN4 RED LED DIFFUSE 1M NPN M8 QD
Starting At: $61.74
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: Z3D-100CN4
IMS Product Code: 1781833
Packaging: Sold Individually
Description:
Optex Z3D-100CN4 Red LED Diffuse 1M NPN M8 QD
Features an optimized optical receiver system tht successfully minimizes the dead zone in front of the lens. This makes it easier to detect workpieces with a low reflectivity that pass close to the sensor even on lines that convey workpieces of varying heights.
Output and stability indicators are brighter than those of conventional models and easier to view from any direction
Specifications:
| Sensing Mode / Type | Diffuse |
| Special Features | |
| Sensing Distance | 1 meter |
| Resolution / Min Detectable Object | 0.4mm or less |
| Light Source | Red LED |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 25mA |
| Response Time | .5ms |
| Sensitivity Adjustment | 1-turn potentiometer |
| Output | NPN |
| Output Operation Mode | LO/DO Switch Selectable |
| Material | ABS (case) PMMA (lens) |
| Protection | IP67 |
| Shock Rating | 100G |
| Temperature | -25 to 55° C |
| Connection | M8 4 pin QD |
| Includes | Mounting bracket/screws are not included |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Availability: 44 In Stock
Lead Time: 3 to 5 Days
