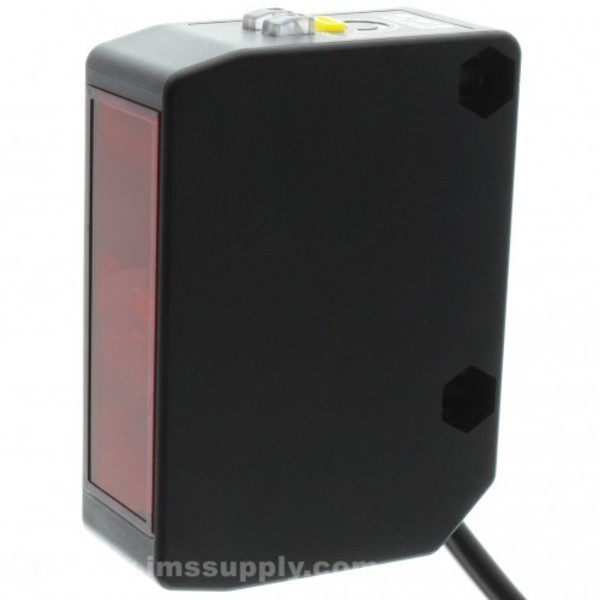

OPTEX BGS-2V30H AC/DC BACKGROUND SUPPRESSION 100 TO 300MM SPDT
Starting At: $156.80
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: BGS-2V30H
IMS Product Code: 1779728
Packaging: Sold Individually
Description:
Optex BGS-2V30H AC/DC Background Suppression 100 to 300mm SPDT relay 2M cable Class B
A large projecting and receiving lens result in a strong projected beam. Ideal for use in tough conditions like a foggy atmosphere.
The BGS-2V30 sensor is capabale of detecting various reflective objects out to 300mm without being influence by background object. Below is a color response chart.
DC24-240V AC24-240V Relay Rated 3amps at 240VAC
Specifications
| Sensing Mode / Type | Background Suppression |
| Sensing Distance | 100 to 300mm |
| Resolution / Min Detectable Object | .5mm or less |
| Light Source | Red LED |
| Supply Voltage | 24 to 240 Volt AC/DC |
| Current Consumption | 3VA |
| Response Time | 15ms |
| Sensitivity Adjustment | 2-turn potentiometer |
| Output | SPDT relay 3 amp AC |
| Output Operation Mode | L/O mode |
| Material | Case/cover ABS (glass reinforced) Lens: PC |
| Protection | IP67 |
| Shock Rating | 50G |
| Temperature | -25 to 55° C |
| Connection | 2 meter cable |
| Includes | Mounting bracket/screws |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
