OPTEX YT-1180CN THRUBEAM 30M NPN LO/DO M8 QD
Starting At: $96.00
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: YT-1180CN
IMS Product Code: 1781735
Packaging: Sold Individually
Description:

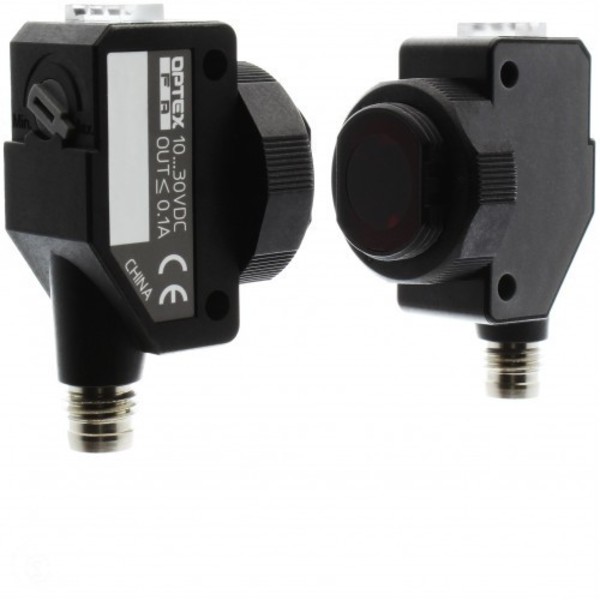

Optex YT-1180CN Thrubeam 30M NPN LO/DO M8 QD
The sensor can easily be mounted by inserting into an 18mm opening. There are also conventional mounting holes holes in the sensor body for added flexibility
30 Meter sensing distance.
Specifications:
| Sensing Mode / Type | Thrubeam |
| Sensing Distance | 30 meter |
| Resolution / Min Detectable Object | 1mm or less |
| Light Source | Red LED |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 35mA |
| Response Time | 0.5ms |
| Sensitivity Adjustment | 1-turn potentiometer |
| Output | 2 each NPN |
| Output Operation Mode | LO and DO |
| Material | ABS w/20% glass (case) PMMA (lens) |
| Protection | IP67 |
| Shock Rating | 100G |
| Temperature | -25 to 55° C |
| Connection | M8 4 pin QD |
| Includes | M18 threaded mounting nut |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
