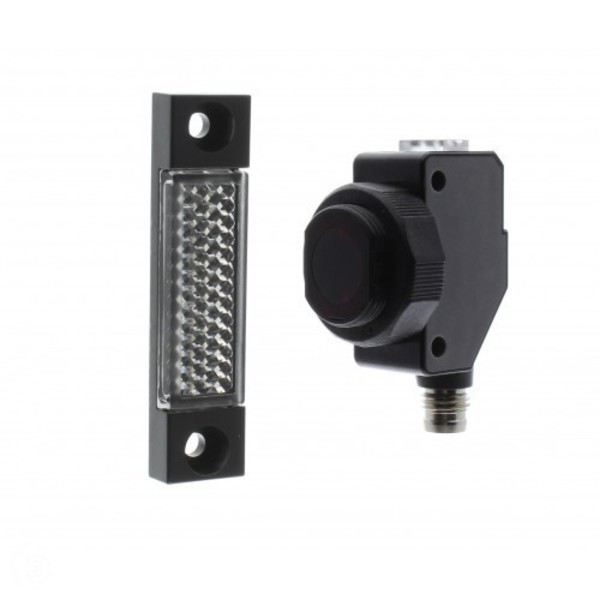

OPTEX YR-Q39CN POL RETRO-REFLECTIVE FOR CLEAR TARGETS1M NPN LO/DO
Starting At: $81.60
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: YR-Q39CN
IMS Product Code: 1781726
Packaging: Sold Individually
Description:
Optex YR-Q39CN Pol Retro-reflective for Clear Targets 1M NPN LO/DO M8 QD
The YR-Q was designed for the detection of transparent targets.
These are ideally suited for clear plastic and glass bottle aplications.
The sensor can easily be mounted by inserting into an 18mm opening. There are also conventional mounting holes holes in the sensor body for added flexibility
Specifications:
| Sensing Mode / Type | Polarized Retro-Reflective for Transparent Object Detection |
| Sensing Distance | 0.01 to 1 meter |
| Resolution / Min Detectable Object | 0.5mm or less |
| Light Source | Red LED |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 30mA |
| Response Time | 0.5ms |
| Sensitivity Adjustment | 1-turn potentiometer |
| Output | 2 each NPN |
| Output Operation Mode | LO and DO |
| Material | ABS w/20% glass (case) PMMA (lens) |
| Protection | IP67 |
| Shock Rating | 100G |
| Temperature | -25 to 55° C |
| Connection | M8 4 pin QD |
| Includes | M18 threaded mounting nut |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
