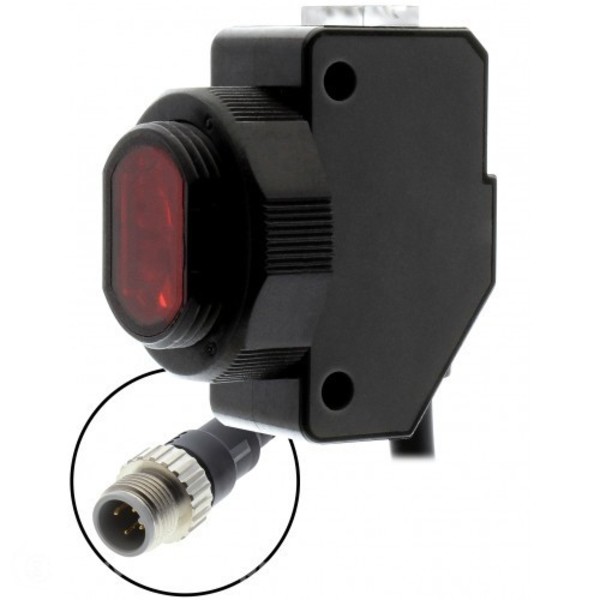

OPTEX YD-15N-M12 DIFFUSE 400MM NPN LO/DO M12 PIGTAIL
Starting At: $88.32
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: YD-15N-M12
IMS Product Code: 1781673
Packaging: Sold Individually
Description:
Optex YD-15N-M12 Diffuse 400mm NPN LO/DO M12 pigtail
The sensor can easily be mounted by inserting into an 18mm opening. There are also conventional mounting holes holes in the sensor body for added flexibility
Diffuse model capable of sensing distances up to 15 inches from target.
Specifications:
| Sensing Mode / Type | Diffuse |
| Sensing Distance | 400mm |
| Resolution / Min Detectable Object | 1mm or less |
| Light Source | Red LED |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 30mA |
| Response Time | 0.5ms |
| Sensitivity Adjustment | 1-turn potentiometer |
| Output | 2 each NPN |
| Output Operation Mode | LO and DO |
| Material | ABS w/20% glass (case) PMMA (lens) |
| Protection | IP67 |
| Shock Rating | 100G |
| Temperature | -25 to 55° C |
| Connection | M12 4 pin QD pigtail |
| Includes | M18 threaded mounting nut |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
