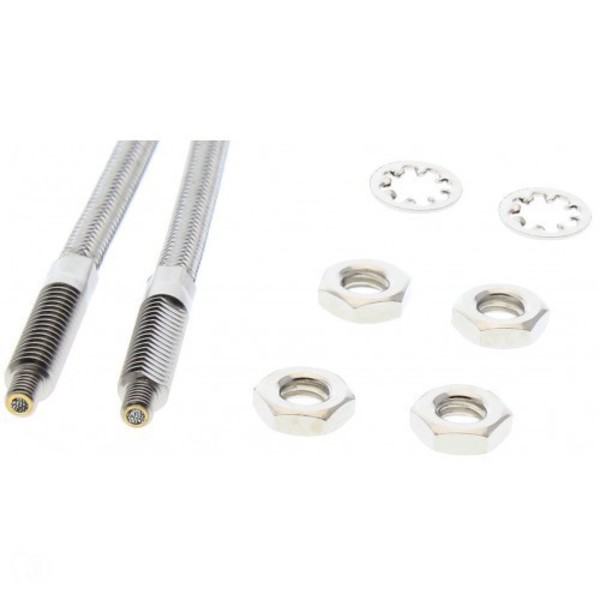

OPTEX NF-TJ01 M4 THRUBEAM 1M SUS JACKET LENS ADAPTABLE
Starting At: $196.00
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF-TJ01
IMS Product Code: 1781268
Packaging: Sold Individually
Description:
Optex NF-TJ01 M4 Thrubeam 1m SUS Jacket Lens Adaptable
Stainless steel braid protects the fiber cable and prevents fiber cable breakage due to snagging. 10mm bending radius allows the cable to bend in tight areas without breaking
Specifications:
| Sensing Mode | Thrubeam |
| Sensor Body Type | Threaded |
| Beam Sensing Direction | Axial Sensing |
| Features | SUS Sheath |
| Mounting Size Dimension | M4 |
| Mounting Size Length | 12 mm |
| D3RF Max Sensing Distance | 1590 mm |
| Min. Detectable Object (D3RF) | Ø 0.05 mm |
| Lens Compatible | Lens attachable |
| Coaxial Fiber | |
| Sleeve | |
| Sleeve Diameter | |
| Sleeve Length | |
| Sleeve Bend Radius | |
| Temperature | -40 to 60° C |
| Fiber Core | Multicore |
| Fiber Cable Bend Radius | R10 |
| Fiber OD (mm) | |
| Fiber Cable Length | 1 meter |
| Cuttable / Non-Cuttable | Non-Cuttable Fiber-Fixed Tips |
| Includes |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
