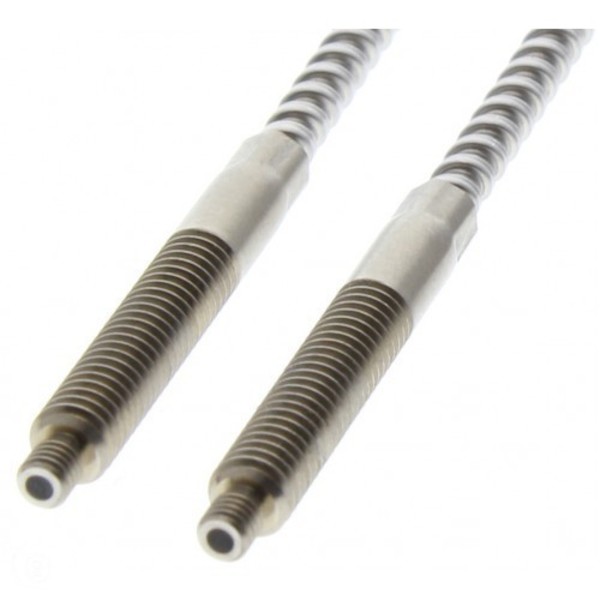

OPTEX NF-TH08 M4 THRUBEAM R25 HI-TEMP FIBER LENS ADAPTABLE
Starting At: $490.00
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF-TH08
IMS Product Code: 1781241
Packaging: Sold Individually
Description:
Optex NF-TH08 M4 Thrubeam R25 Hi-Temp Fiber Lens Adaptable
Thrubeam fiber cable with operating range between -30 and 350 degrees Celcius. 1.44 maximum maximum sensing distance with D3RF amplifier.
Specifications:
| Sensing Mode | Thrubeam |
| Sensor Body Type | Threaded |
| Beam Sensing Direction | Axial Sensing |
| Features | SUS Jacket |
| Mounting Size Dimension | M4 |
| Mounting Size Length | 17 mm |
| D3RF Max Sensing Distance | 1440 mm |
| Min. Detectable Object (D3RF) | Ø 0.04 mm |
| Lens Compatible | |
| Coaxial Fiber | |
| Sleeve | |
| Sleeve Diameter | |
| Sleeve Length | |
| Sleeve Bend Radius | |
| Temperature | -30 to 350° C |
| Fiber Core | 1.2 |
| Fiber Cable Bend Radius | R25 |
| Fiber OD (mm) | |
| Fiber Cable Length | 2 meters |
| Cuttable / Non-Cuttable | Non-Cuttable Fiber-Fixed Tips |
| Includes |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
