OPTEX NF-DW02 LIQUID LEAK SENSING FIBER, PFA PROTECTED FIBER
Starting At: $656.60
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF-DW02
IMS Product Code: 1781163
Packaging: Sold Individually
Description:

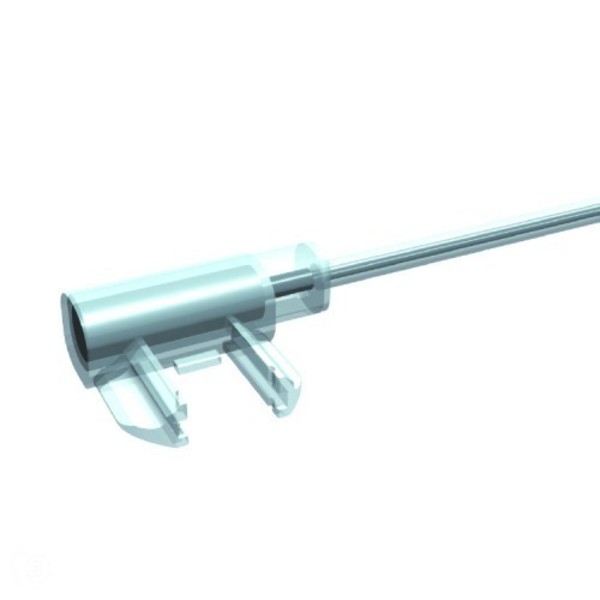

Optex NF-DW02 Liquid Leak Sensing Fiber, PFA Protected Fiber
Detects leakage of non-viscous liquid in the bottom of pan. Great for many chemical liquids as well as water.
Specifications:
| Sensing Type | Leak Sensing |
| Sensing Method | Contact Type |
| Features | Detects even small amounts of chemical leak/spill |
| Use with Fiber Amp Model | D3RF |
| Dimension | 30 x 20 x 10 mm |
| Temperature | -20 to 50° C |
| Fiber Protection | PFA Jacket |
| Fiber Protection Length / Bend Radius | 3,000 mm R20 |
| Fiber Cable Bend Radius | R4 |
| Fiber OD (mm) | 1.0 mm |
| Fiber Cable Length | 5 meters |
| Cuttable / Non-Cuttable | Cuttable |
| Includes | Fiber cutter and tips. Order mounting fixture separately. |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
