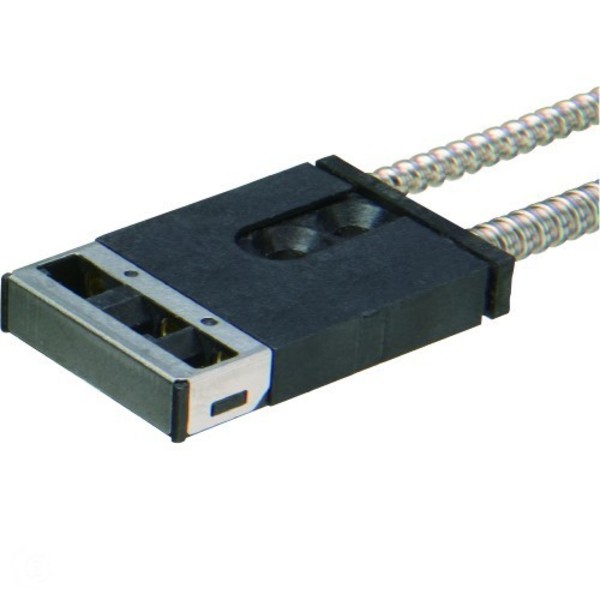

OPTEX NF-DH11 CONVERGENT FOR ALIGNMENT DETECTION OF GLASS
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF-DH11
IMS Product Code: 1781053
Packaging: Sold Individually
Description:
Optex NF-DH11 Convergent For Alignment Detection of Glass
Specifications:
| Sensing Mode | Convergent |
| Type of Sensing | High accuracy edge sensing of warped/angled glass/quartz targets |
| Beam Sensing Direction | Front-On |
| Mounting Size | 34.5 x 21 x 5 mm |
| Beam Diameter / Array (mm) | |
| Min. Detectable Object (D3RF) | Ø 0.02 mm |
| Temperature | -20 to 250° C |
| D3RF Max Sensing Distance | 2 to 45 mm |
| Fiber Cable Bend Radius | R25 |
| Fiber OD (mm) | SUS sheath |
| Fiber Cable Length | 3 meters |
| Cuttable / Non-Cuttable | Non-Cuttable Fiber-Fixed Tips |
| Includes |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
