OPTEX NF-DA05 DIFFUSE LENS FOR Ø0.5 BEAM SPOT AT 6MM
Starting At: $44.10
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: NF-DA05
IMS Product Code: 1780972
Packaging: Sold Individually
Description:

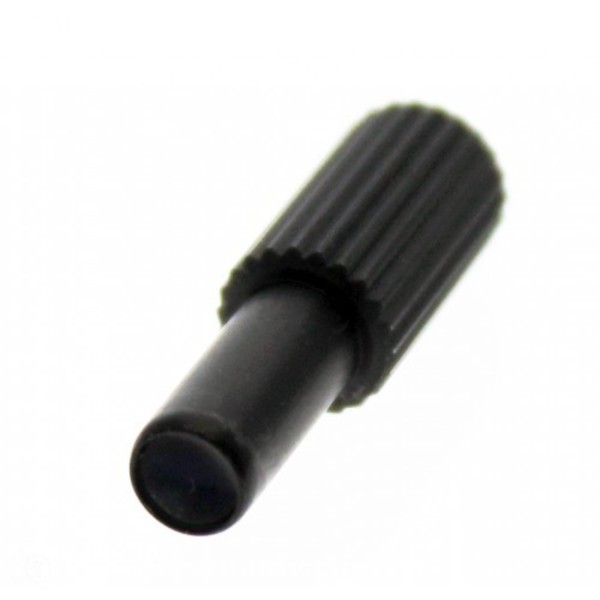

Optex NF-DA05 Diffuse Lens for Ø0.5 Beam Spot at 6mm
Threaded focusing lens creates beam spot as small as 0.5mm in diameter when attached to NF-Dk21 fiber cable.
Specifications:
| Sensing Mode | Diffuse type for focused beam spot |
| Beam Sensing Direction | Axial |
| D3RF Max Sensing Distance | 6 mm |
| Smallest Beam Spot | Ø 0.5mm |
| Use with Fibers Threaded Tips | M4 x 0.7mm threaded tip |
| Features | Ø 0.5 with NF-DM02-G4 or NF-DM02 fiber cable |
| Min. Detectable Object (D3RF) | Ø 0.005 mm Gold Plated Wire |
| Sensor Body Shape | Cylindrical Smooth |
| Lens Dimension | Ø 4 x 20.2 mm |
| Temperature | -40 to 70° C |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
