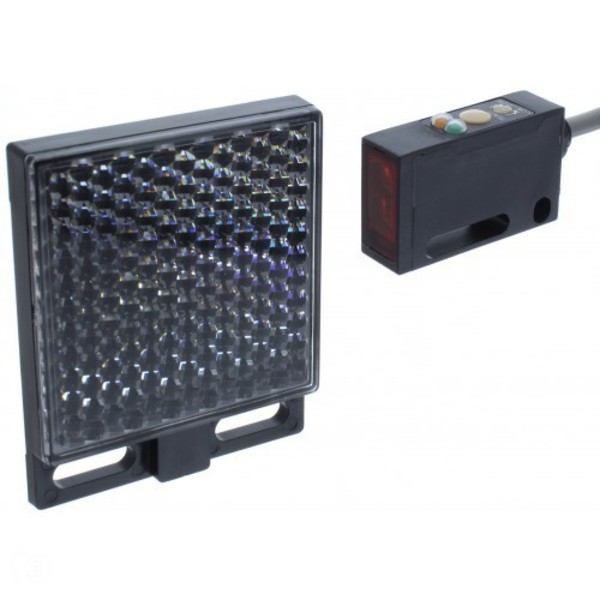

OPTEX J3R-H100N PB TEACH, POLARIZED RETRO-REFLECTIVE NARROW VIEW
Starting At: $156.40
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: J3R-H100N
IMS Product Code: 1780703
Packaging: Sold Individually
Description:
Optex J3R-H100N PB Teach, Polarized Retro-reflective Narrow View 1M NPN 2M cable
Horizontal sensing type with slotted mounting holes for flexible mounting
Pushbutton and remote teach capable
Specifications:
| Sensing Mode / Type | Polarized Retro-Reflective Narrow View |
| Special Features | Head-on sensing type |
| Sensing Distance | 0,5 to 1 meter |
| Resolution / Min Detectable Object | 1mm/100mm min detectable object |
| Light Source | Red LED |
| Beam Spot Size / Distance Ø | |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | |
| Response Time | 0.2ms |
| Sensitivity Adjustment | PB / remote teach |
| Hysteresis | |
| Output | NPN |
| Output Operation Mode | LO/DO Switch Selectable |
| Material | PBT (case) PC (lens) |
| Protection | IP67 |
| Shock Rating | 100G |
| Temperature | -25 to 55° C |
| Connection | 2 meter cable |
| Includes | Mounting bracket/screws |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
