OPTEX ET-500NL3 FRONT SENSING THRUBEAM 500MM NPN
Starting At: $127.40
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: ET-500NL3
IMS Product Code: 1780637
Packaging: Sold Individually
Description:

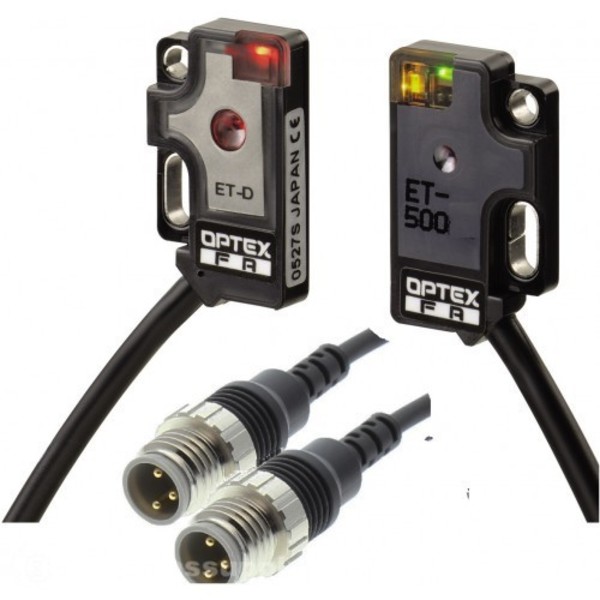

Optex ET-500NL3 Front sensing Thrubeam 500mm NPN Light-On M8 pigtail QD
Front sense version only 3.5mm thick perfect for mounting in tight spaces.
All models have achieved IP67 rating adn all models are ROHS compliant.
Verification of the operation of the sensor is easy. Also the mounting holes allow for added flexibility for easy installation.
Verification of the operation of the sensor is easy. Also the mounting holes allow for added flexibility for easy installation.
Specifications:
| Sensing Mode / Type | Thrubeam |
| Special Features | Front sensing type |
| Sensing Distance | 500mm |
| Resolution / Min Detectable Object | 0.3mm or less |
| Light Source | Red LED |
| Beam Spot Size / Distance Ø | Ø140mm/500mm |
| Supply Voltage | 12 to 24 VDC |
| Current Consumption | 30mA |
| Response Time | 0.5ms |
| Sensitivity Adjustment | None |
| Hysteresis | |
| Output | NPN |
| Output Operation Mode | Light-On |
| Material | PC |
| Protection | IP67 |
| Shock Rating | 100G |
| Temperature | -25 to 55° C |
| Connection | M8 3 pin QD pigtail |
| Includes | Mounting screw, washer and nuts |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
