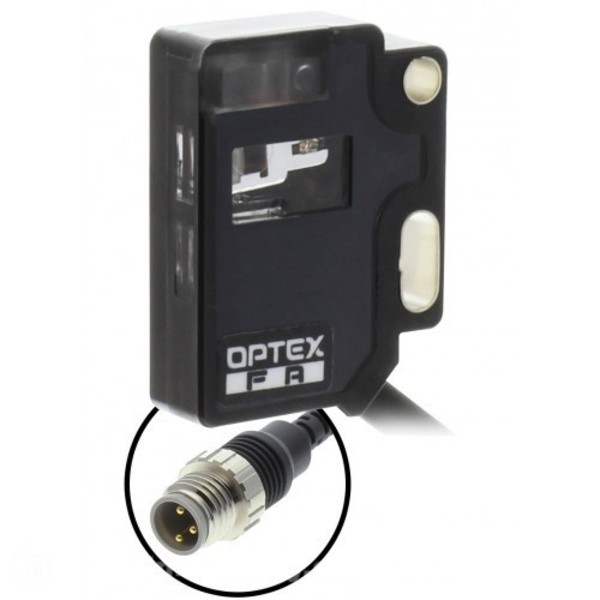

OPTEX ED-S30PD3 SIDE SENSING DIFFUSE 30MM PNP DARK-ON M8 PIGTAIL
Starting At: $93.10
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: ED-S30PD3
IMS Product Code: 1780575
Packaging: Sold Individually
Description:
Optex ED-S30PD3 Side Sensing Diffuse 30mm PNP Dark-On M8 pigtail QD
Only 5mm thick.
All models have achieved IP67 rating adn all models are ROHS compliant.
Verification of the operation of the sensor is easy. Also the mounting holes allow for added flexibility for easy installation.
Verification of the operation of the sensor is easy. Also the mounting holes allow for added flexibility for easy installation.
Specifications:
| Sensing Mode / Type | Diffuse |
| Special Features | Super side-sensing type |
| Sensing Distance | 30mm |
| Resolution / Min Detectable Object | ±0.05mm max. |
| Light Source | Red LED |
| Beam Spot Size / Distance Ø | Ø3mm/30mm |
| Supply Voltage | 12 to 24 VDC |
| Current Consumption | 20mA |
| Response Time | 0.5ms |
| Sensitivity Adjustment | None |
| Hysteresis | 0.1 |
| Output | PNP |
| Output Operation Mode | Dark-On |
| Material | PC |
| Protection | IP67 |
| Shock Rating | 100G |
| Temperature | -25 to 55° C |
| Connection | M8 3 pin QD pigtail |
| Includes | Mounting screw, washer and nuts |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
