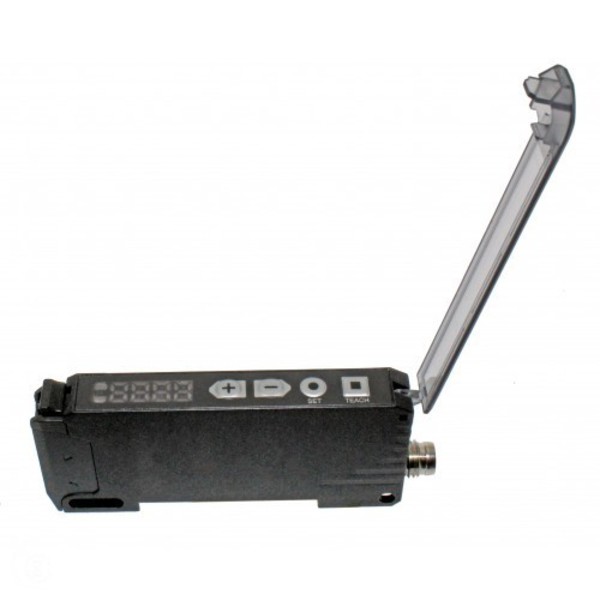

OPTEX D1RF-TC FIBER OPTIC AMPLIFIER DIGITAL DISPLAY
Starting At: $97.02
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: D1RF-TC
IMS Product Code: 1780353
Packaging: Sold Individually
Description:
Optex D1RF-TC Fiber Optic Amplifier Digital Display with Pushbutton Teach NPN/PNP Selectable M8 4 Pin QD
The D1RF series is a flexible digitial fiber optic amplifier featuring an IP66 rating allowing you to mount it in locations that aren't possible with other fiber amps.
It has push button teach and a bright digital display that shows the light recieving level, threshold and set value, etc. The D1RF series has response time switching and is NPN/PNP switchable.
The series will also allow you to switch between three levels of light which is useful when detecting short distances or when detecting transparent or small objects.
Mounting holes allows the sensor to be mounted outside of the cabinet.
Set-up is quick and easy with the intuitve display and menu function
Below are dimensions for both the M8 Connector version as well as the 2 meter cable type
Below are dimensions for both the M8 Connector version as well as the 2 meter cable type
Specifications:
| Features | Amplifier can be mounted on DIN rail or M3 screw mount. |
| Sensitivity Adjustment | PB teach with 2-button fine adjust |
| Supply Voltage | 10 to 30 VDC |
| Light Source | Red LED |
| Indicators | Orange LED (output status) Green LED (stability status) |
| Model Type | Stand-Alone Type |
| Cross-Talk Prevention | |
| LED Power Level Control | Settable levels: 100%, 50%, and 25% |
| Current Consumption | 40mA |
| Response Time | 250µs/ 50ms selectable |
| Output | NPN/PNP Selectable |
| Output Operation Mode | Light-on / dark-on selectable |
| Timer/Counter Option | On-delay, Off-delay, One-shot selectable |
| Shock Rating | 50G |
| Protection | IP66 |
| Temperature | -25 to 55° C |
| Connection | M8 4P QD |
| Includes | Does not include BEF-WLL170 DIN bracket (Order separately) |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
