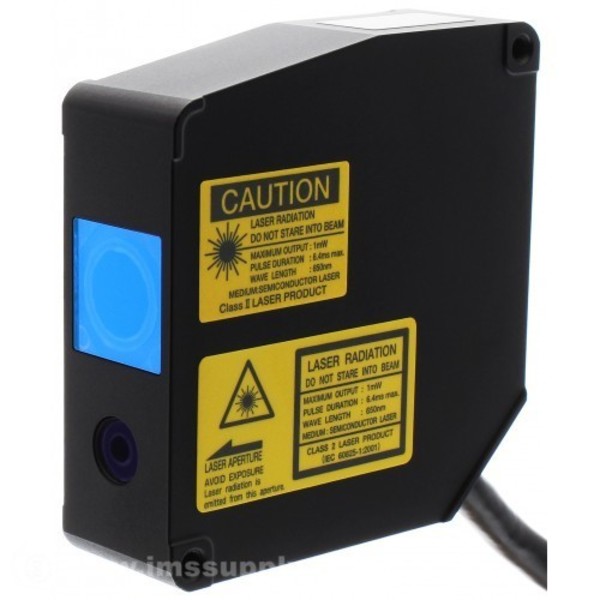

OPTEX CD5-W85 LASER MEASUREMENT 65 TO 105MM RANGE WIDE BEAM
Starting At: $3,472.14
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: CD5-W85
IMS Product Code: 1782895
Packaging: Sold Individually
Description:
Optex CD5-W85 Laser Measurement 65 to 105mm Range Wide Beam
The linearity has been improved to more than twice that of a conventional product by digital sub-pixel processing. This divides one pixel into 65536 sub-pixels providing accurate profile reproduction.
Even if the object is translucent or its surface is eneven, it can detect the position of the true peak thanks to a custom algorithm designed by Optex
Cross talk prevention function eliminates interference between 2 sensor even when the beams are crossing or are mounted close together.
The wide beam spot type can measure rough surfaces with a high degreee of linearity and stability.
When specular mode is selected the sensor can measure 1st surface of transparent material and can even detect glass thickness using the glass thickness measurement algorithm
Specifications:
| Description | High Resolution Displacment Laser Sensor with RS-422 Serial Communication |
| Feature | Use as stand-alone, connected to PC, or connected to color/LCD controller |
| Sensing Mode | Diffuse Reflective or Specular Reflective |
| Supply Voltage | 12-24 VDC ±10% |
| Operation Temperature | -10 to +50° C |
| Measurement Range | 85mm ±20mm |
| Sensing Window | 65 to 105mm |
| Repeatability | 1µm |
| Light Source | Red Laser Diode |
| Wave Length | 650nm |
| Maximum Output | 1 mW |
| Laser Class IEC/JIS | Class 2 |
| Laser Class FDA | Class II |
| Beam Spot Type | Wide |
| Laser Spot Size (Diffuse Reflective) | 260 x 1200µm at 85mm |
| Linearity | ±0.05% F.S. |
| Temp Drift | ±0.01% /°C of F.S. |
| Digital Control Output | Choose CD5A Controller for NPN or PNP type |
| Analog Output | CD5A Controller provides ±10 VDC and 4-20mA |
| Serial Communication | CD5A Controller provides USB and RS-232 |
| Protection / Enclosure Type | IP67/Diecast Alum-Glass Lens |
| Connection | 500mm Pigtail w/12 Pin Conn |
