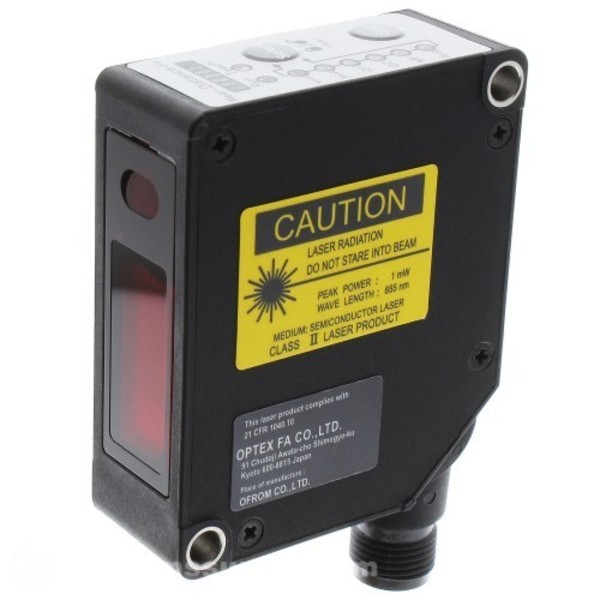

OPTEX CD33-50CPA DIFFUSE 50MM ±10MM, 2CH PNP / 4-20MA, QD
Starting At: $1,078.00
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: CD33-50CPA
IMS Product Code: 1782314
Packaging: Sold Individually
Description:
Optex CD33-50CPA Diffuse 50mm ±10mm, 2ch PNP / 4-20mA, QD
High accuracy 4-20ma current output version for measurement applications where linear output proportional to sensing distance is required. Also includes 2 digital outputs that can be used for comparator applications or use one for out of range alarm etc.
Ideal for mounting on robotic cylinder thanks to compact dimensions and light weight. IP67 water tightness is also secured.
High resolution electronic shtter controls to keep a constant level according to reflection. This function enables stable peak level detection even when unstable surface conditions exist.
Subpixel processing divides one pixel into small pieces that enables accurate measurement by reproducing genuine value of incoming lighte
The programmable remote MF intput can be set to one of the following laser off, external teach, hold, or one-shot trigger.
Specifications:
| Sensor Type | Self-Contained CMOS Displacement Laser Measurement Sensor |
| Sensing Mode | Diffuse Reflective Type |
| Supply Voltage | 12-24VDC (-5% / +10%) |
| Operation Temperature | -10 to +45° C |
| Measurement Range | 50mm ±10mm |
| Sensing Window | 40 to 60mm |
| Repeatability | 5µm |
| Light Source | Red Laser Diode |
| Wave Length | 655nm |
| Maximum Output | 1 mW |
| Laser Class IEC / JIS | Class 2 |
| Laser Class FDA | Class II |
| Laser Spot Size | 0.5 x 1.0mm at 50mm |
| Linearity | ±0.1% F.S. |
| Temp Drift | ±0.08% /°C of F.S. |
| Digital Control Output | 2 ea PNP output |
| Analog Output | 4-20mA |
| Serial Communication | None |
| Protection / Enclosure Type | IP67/PBT |
| Connection | M12 8 Pin QD Swivel Type |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
