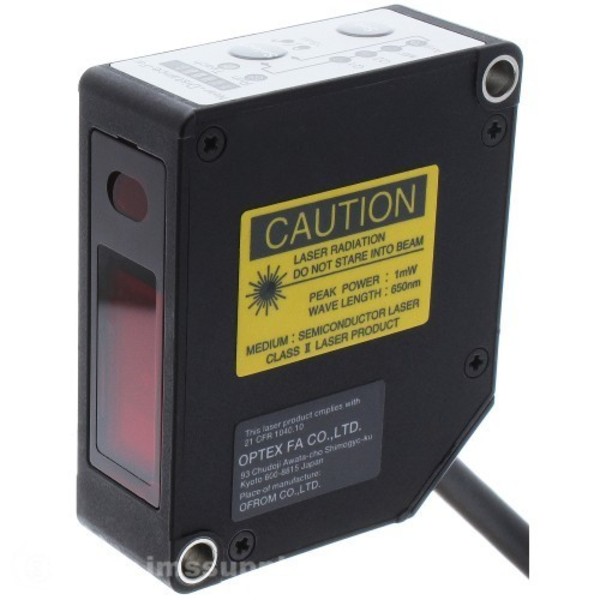

OPTEX CD33-250N-422 DIFFUSE 250MM +/- 150MM, 1CH NPN / RS-422
Starting At: $1,078.00
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: CD33-250N-422
IMS Product Code: 1782189
Packaging: Sold Individually
Description:
Optex CD33-250N-422 Diffuse 250mm ±150mm, 1ch NPN / RS-422, Cable
RS-422 version provides digital output of measurement data over serial communications. There is a basic software application for communicating with the sensor via PC. The serial version can also be connected directly to the Melsec-Q series PLC when using the UQ1 controller. This controller provides an automatic and simple interface to the PLC. The best solution for measurement applications when using Mitsubishi Q series PLC.
Ideal for mounting on robotic cylinder thanks to compact dimensions and light weight. IP67 water tightness is also secured.
High resolution electronic shtter controls to keep a constant level according to reflection. This function enables stable peak level detection even when unstable surface conditions exist.
Subpixel processing divides one pixel into small pieces that enables accurate measurement by reproducing genuine value of incoming light
Specifications:
| Sensor Type | Self-Contained CMOS Displacement Laser Measurement Sensor |
| Sensing Mode | Diffuse Reflective Type |
| Supply Voltage | 12-24VDC (-5% / +10%) |
| Operation Temperature | -10 to +45° C |
| Measurement Range | 250mm ±150mm |
| Sensing Window | 100 to 400mm |
| Repeatability | 75µm |
| Light Source | Red Laser Diode |
| Wave Length | 655nm |
| Maximum Output | 1 mW |
| Laser Class IEC / JIS | Class 2 |
| Laser Class FDA | Class II |
| Laser Spot Size | 1.75 x 3.5mm at 250mm |
| Linearity | ±0.3% F.S. |
| Temp Drift | ±0.08% /°C of F.S. |
| Digital Control Output | 1 ea NPN output |
| Analog Output | None |
| Serial Communication | RS-422 |
| Protection / Enclosure Type | IP67/PBT |
| Connection | 2m Cable |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
