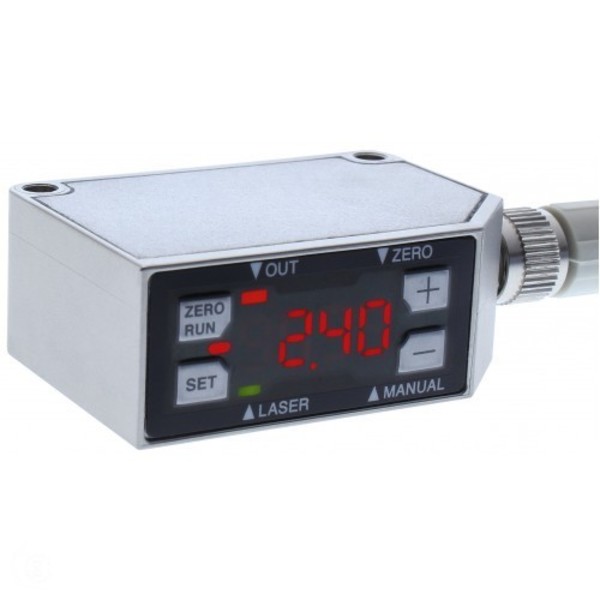

OPTEX CD22M-100VC DIFFUSE 100MM +/- 50MM, DIGITAL DISPLAY 0-10VDC
Starting At: $857.50
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: CD22M-100VC
IMS Product Code: 1782140
Packaging: Sold Individually
Description:
Optex CD22M-100VC Diffuse 100mm ±50mm, Digital Display 0-10VDC QD
Compact Size perfect for online real time inspection during manufacturing.
Linearity around +/-0.1% full scale or better even with stainless steel or black rubber.
In addition to standard feedback, received light to laser power, the CD22 hsa automatic sampling function which enables stable measurement of metal surfaces and also black material by adjusting the sampling speed automatically.
Bright 4 digit display in small housing, Intuitive set-up with 4 buttons, high end functions that are easily adjusted
The clamp and hold function allows the sensor to ignore small holes in parts or targets with very rough surfaces. If the sensor detects a hold in a part instead of going to out of range the sensor will hold the last known good value for the amount of time set by the user.
Digital sub-pixel processing improves linearity by more than twice that of conventional laser measurement sensors. The CD22 sub-pixel processing divides one pixel in to 65536 sub-pixels to help produce a genuine wave form.
Specifications:
| Sensor Type | Self-Contained Displacement Laser Measurement Sensor |
| Sensing Mode | Diffuse Reflective Type |
| Supply Voltage | 12-24 VDC ±10% (18-24 VDC ±10% when using 0-10 VDC Analog) |
| Operation Temperature | -10 to +50° C |
| Measurement Range | 100mm ±50mm |
| Sensing Window | 50 to 150 mm |
| Repeatability | 20µm |
| Light Source | Red Laser Diode |
| Wave Length | 655nm |
| Maximum Output | 1 mW |
| Laser Class IEC/JIS | Class 1 |
| Laser Class FDA | Class II |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
