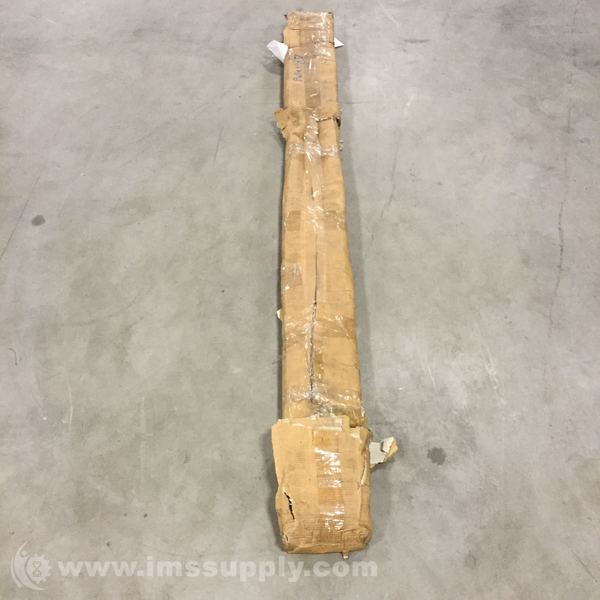

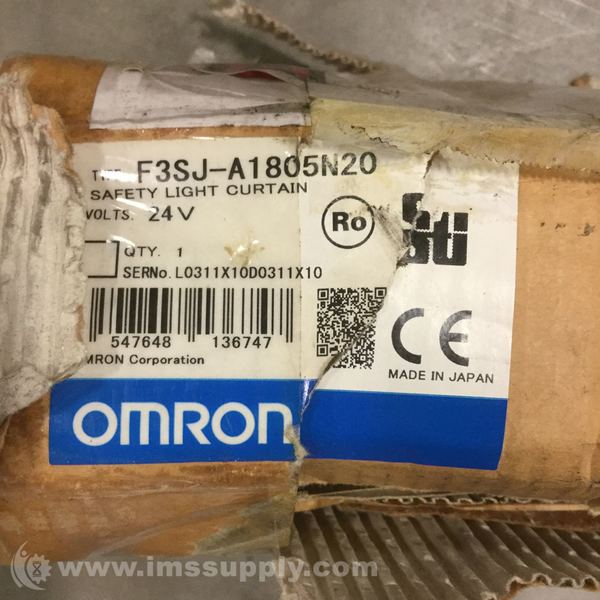

OMRON F3SJ-A1805N20 SAFETY LIGHT CURTAIN SET
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: F3SJ-A1805N20
IMS Product Code: 1802587
Packaging: Sold Individually
Description:
Omron F3SJ-A1805N20 Safety Light Curtain Set
Specifications:
- Applicable safety category: Category 4, 3, 2, 1, or B
- Minimum sensing object: Opaque object 20mm dia.
- Beam gap (P): 15 mm
- Number of beams (n): 120
- Protective height (PH): 1805 mm
- Lens diameter Diameter 5 mm
- Sensing distance 0.2 to 7 m
- Response time (ON -> OFF) 20 ms max.
- Response time (OFF -> ON) 80 ms max.
- Startup waiting time 2 s Max. (2.2 s Max. in case of series connection)
- Power supply voltage (Vs) 24 VDC -20% to 20% (Ripple (p-p): 10 % Max.)
- Current consumption (no load) Emitter: 130 mA max.
- Receiver: 111 mA max.
- Light source Infrared LED (870 nm)
- Control output (OSSD) Two NPN transistor outputs
- Load current: 300 mA max.
- Residual voltage: 2 V max.
- Leak current: 2 mA max.
- Output operation mode Safety output: Light-ON
- Series connection Number of connections: 4 Set max.
- Total number of beams: 400 max.
- Maximum cable length for 2 sets: 15 m max.
- Test functions Self test (when power is turned ON and while power is supplied, one cycle during response time)
- External test (light emission stop function by test input)
- Connection method Connectors (M12, 8-pin)
- Protective circuit Output short-cut protection
- Power supply reverce polarity protection
- Ambient temperature Operating: -10 to 55 ℃
- Storage: -30 to 70 ℃
- Ambient humidity Operating: 35 to 85%RH
- Storage: 35 to 95%RH
- Ambient illuminance Incandescent lamp: 3000 lx Max., Sunlight: 10000 lx Max.
- Insulation resistance 20 MOhm Min. at 500 VDC
- Degree of protection (IEC60529) IP65
- Dielectric strength 1000 VAC at 50/60 Hz for 1 minute
- Vibration resistance 10 to 55 Hz, Double-amplitude: 0.7-mm, for 20 sweeps each in X, Y and Z directions
- Shock resistance 100 m/s**2, for 1000 times each in X, Y, and Z directions
- Material Case: Aluminum, Zinc diecast
- Optical cover: PMMA (Acrylic resin)
- Cap: ABS resin
- Cable: Oil-proof PVC
- Mass(Package) Approx. 5107.5 g
