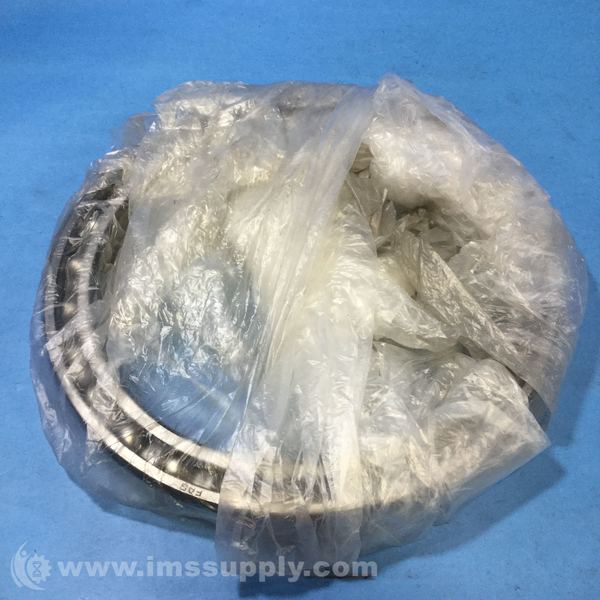

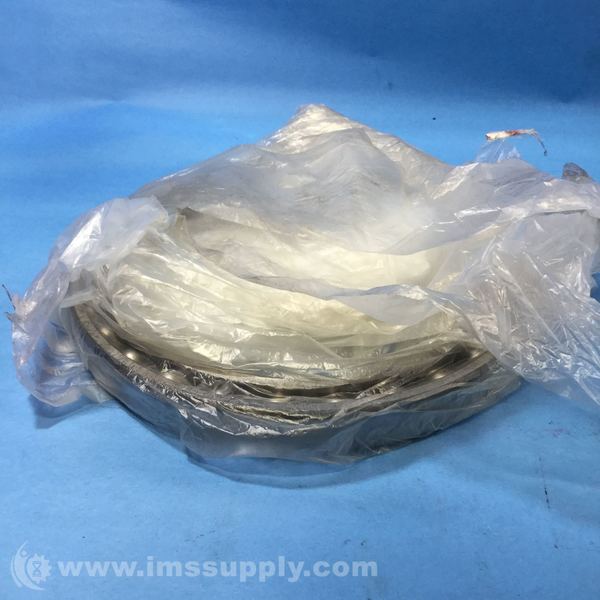

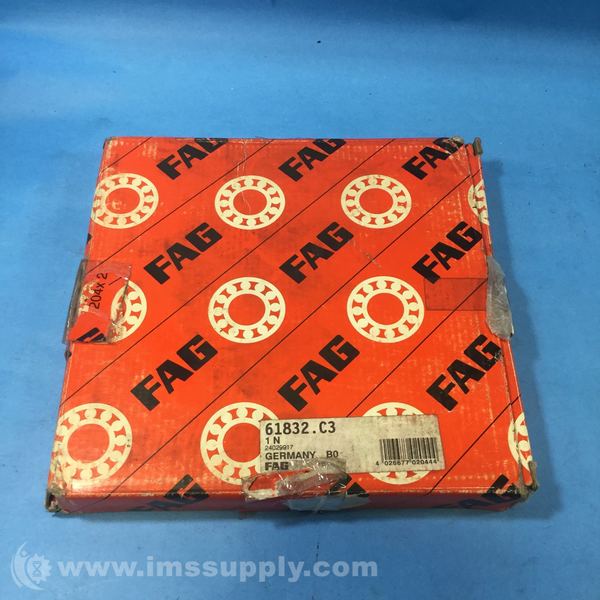

FAG BEARING 61832.C3 RADIAL/DEEP GROOVE BALL BEARING, ROUND BORE
Starting At: $1,035.00
Quick Overview
Manufactured By: FAG BEARING
Manufacturer Part Number: 61832.C3
IMS Product Code: 1793100
Packaging: Sold Individually
Description:
Fag Bearing 61832.C3 Radial/Deep Groove Ball Bearing, Round Bore, 160 mm ID, 200 mm OD, 20 mm Width, Open, C3
Specifications:
- Bore diameter: 160 mm
- Static load capacity: 62000 N
- Outside diameter: 200 mm
- Precision rating: Not Rated
- Overall width: 20 mm
- Finish/coating: Uncoated
- Bore type: Round
- Cage material: Steel
- Closure type: Open
- Outer ring width: 20 mm
- Row type & fill slot: Single Row Non-Fill Slot
- Fillet radius: 1 mm
- Internal clearance: C3
- Maximum rpm: 4450 RPM
- Operating temperature range: Maximum of +120 °C
- Standards met: DIN 625-1
- Dynamic load capacity: 55000 N
- Series: 618
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
Ships today if ordered in the next 2 hours and 23 minutes.
