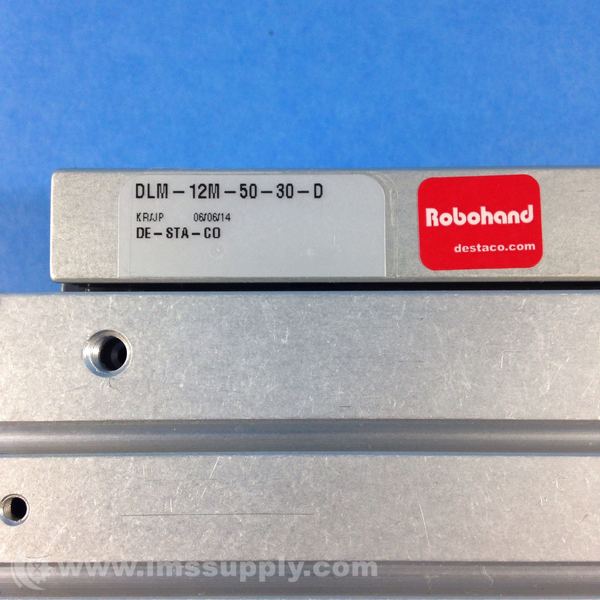

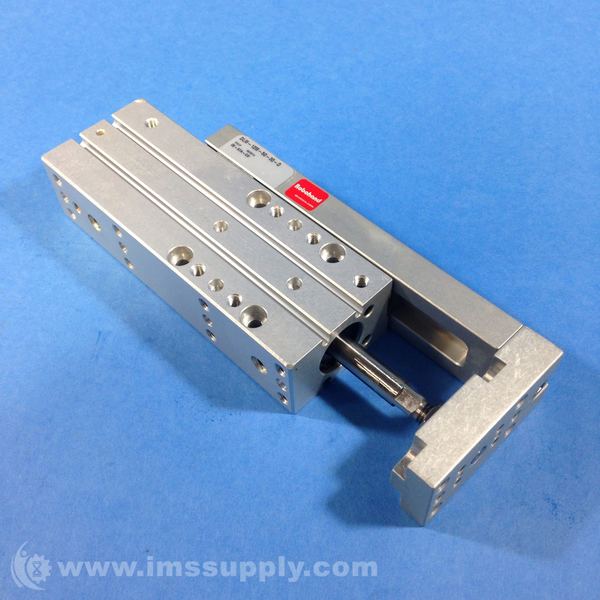

DESTACO DLM-12M-50-30-D PNEUMATIC SLIDES PRODUCT
Starting At: $388.13
Quick Overview
Manufactured By: DESTACO
Manufacturer Part Number: DLM-12M-50-30-D
IMS Product Code: 1737927
Packaging: Sold Individually
Description:
Pneumatic Slides; Product Type: Slide; Overall Length (mm): 166; Overall Length (Decimal Inch): 6.5354; Slide Type: Ball Rail Slide; Series: DLM; Bearing Type: Ball Bearing
Product Type: Slide
Overall Length (mm): 166
Overall Length (Decimal Inch): 6.5354
Slide Type Ball Rail: Slide
Series: DLM
Bearing Type: Ball Bearing
Cylinder Type: Double-Acting
Overall Width (mm): 31
Overall Width (Decimal Inch): 1.2205
Mounting Orientation: Horizontal; Vertical
Number of Valve Positions: 2
Seal Material: Buna-N
Minimum Operating Temperature ( F): -30
Minimum Operating Temperature ( C): -35
Maximum Operating Temperature ( F): 180
Maximum Operating Temperature ( C): 80
Minimum Operating Pressure (psi): 20
Minimum Operating Pressure (bar): 1.40
Maximum Operating Pressure (psi): 100
Maximum Operating Pressure (bar): 7
Stroke (mm): 30
Stroke (Decimal Inch): 1.1811
Horizontal Load Capacity (kg): 1.81
Horizontal Load Capacity (Lbs): 4
Bore Diameter (mm): 22
Bore Diameter (Decimal Inch): 0.8661
Special Features: Double Bearing; Manifold Air Porting; Multiple Air Port Positions; Multiple Mounting Locations; Sensing; Stroke Adjustments; Thru Mounting
Shaft Diameter (mm): 22
Shaft Diameter (Decimal Inch): 0.8661
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
