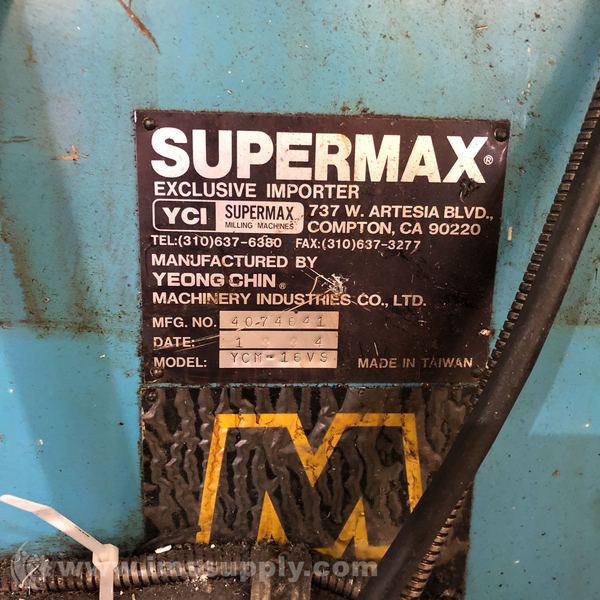

YEONG CHIN MACHINERY INDUSTRIES CO., LTD. YCM-16VS
Quick Overview
Manufactured By: YEONG CHIN MACHINERY INDUSTRIES CO., LTD.
Manufacturer Part Number: YCM-16VS
IMS Product Code: 1971853
Packaging: Sold Individually
Description:

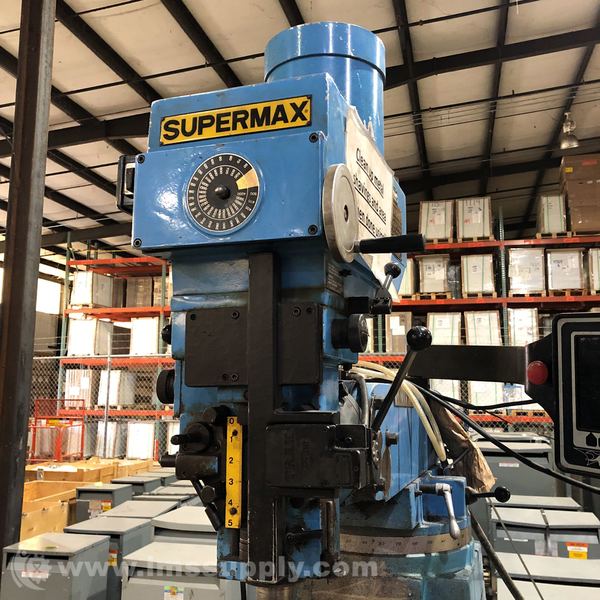

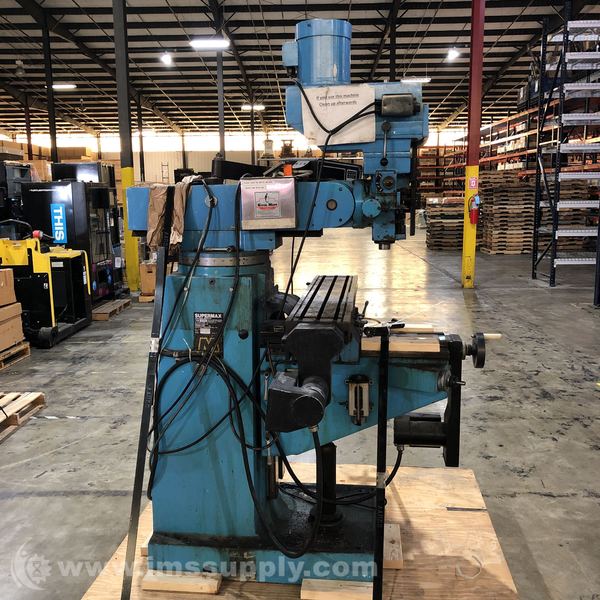

Yeong Chin Machinery Industries Co., LTD. YCM-16VS Supermax Knee-Type Milling Machine
Specifications:
- Spindle Motor: 3HP
- Spindle RPM: 0-3500 (50Hz) 60-4200 (60Hz
- Power Feed Per Revolution: 0.0432mm, 0.0813mm, 0.1346mm
- T-Slots (width x number x distance); 15.87mm x 3 x 63.5mm
- Max. Loading Capacity: 350kgs

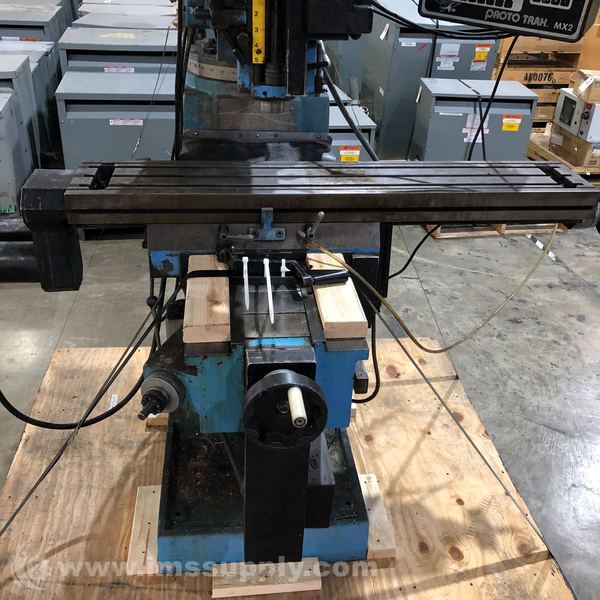

- Table Size (width x length): Standard (42") 230mm x 1067mm
- Longitudinal Travel (X): 787mm
- Longitudinal Travel with Power Feed (X):692mm
- Cross Travel (Y): 406mm
- Knee Travel: 406mm
- RAM Travel: 457mm
- Quill Travel: 127mm
- Overall Height: 2200mm
- Overall Depth: 1870mm
- Overall Width: 2480mm
- Spindle Center to Column: 163mm-620mm
- Table to Spindle Nose: 0-183mm
- Table Center to Column: 134mm-540mm
Used (Special):

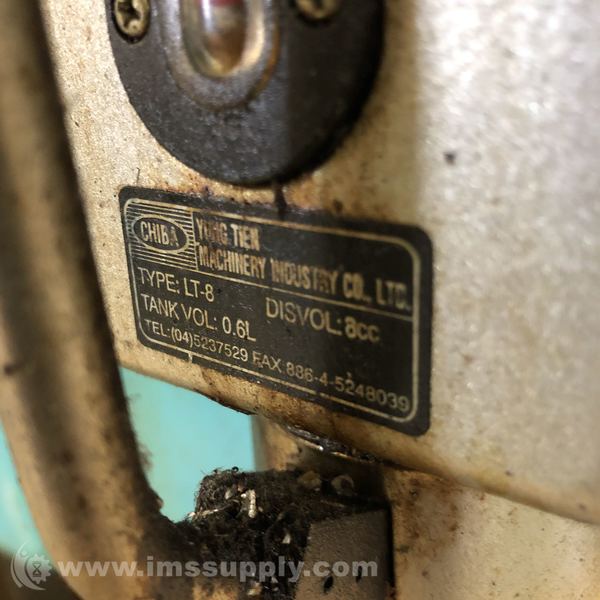

Machine has the following parts attached: Kool Mist 100N, Jih Chin Electric Machinery Co., LTD CNS-C-4088, Southwestern Industries, Inc. 15832-1 Rev. A, Yung Tien Machinery Industry Co., LTD LT-8, and an unknown MFG with part number 15814 Rev. C.
Availability: 1 In Stock
Ships on Monday, November 25, 2024
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
