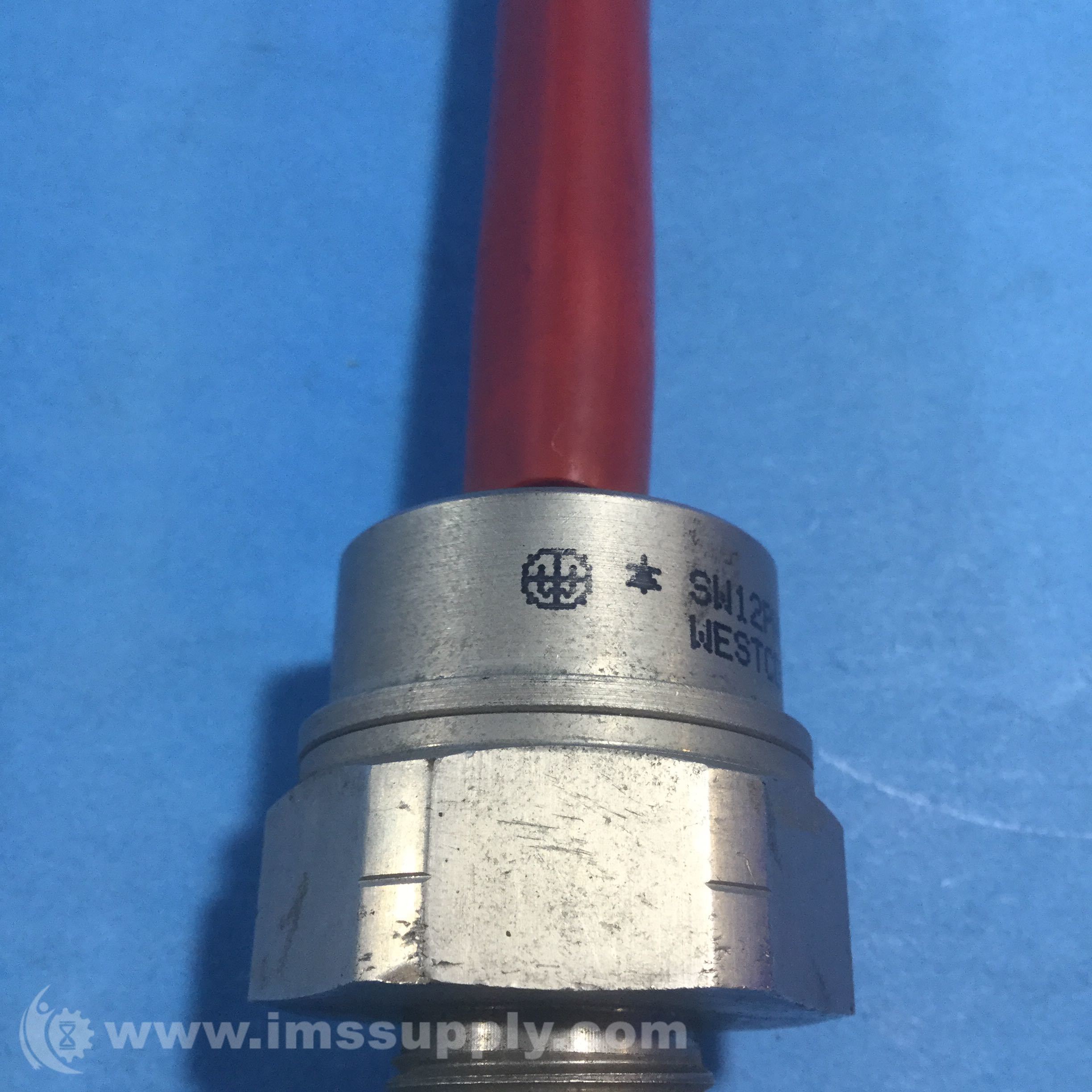

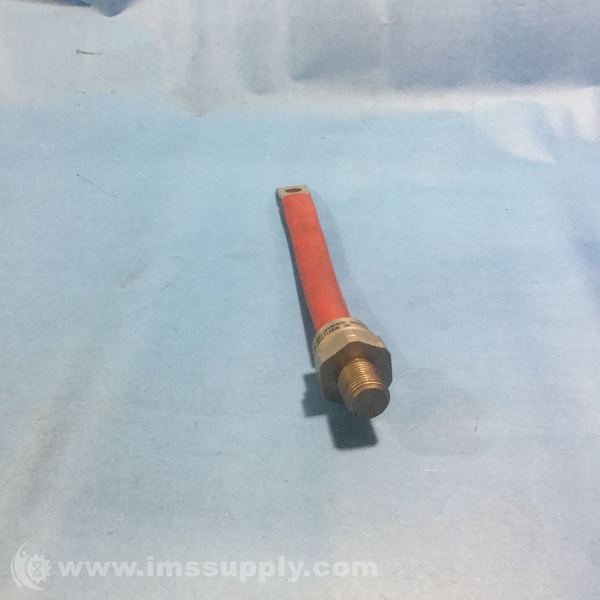

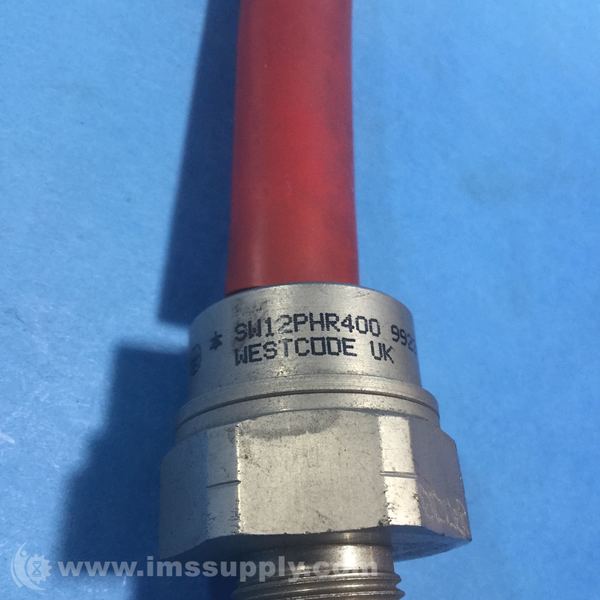

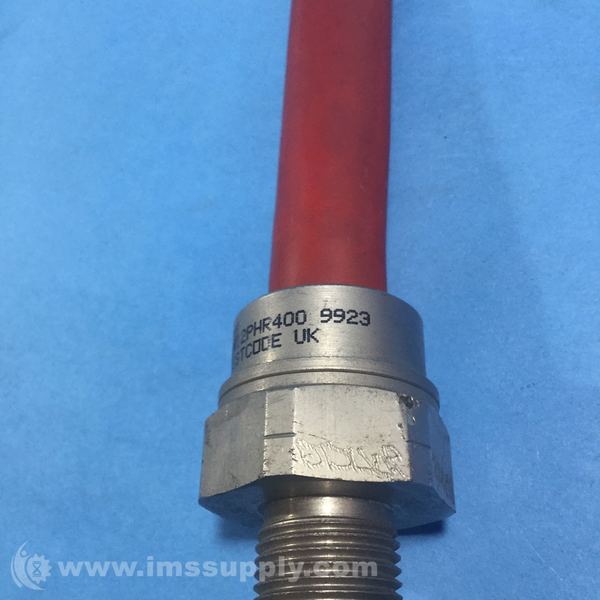

WESTCODE SW12PHR400 9923 STANDARD RECOVERY DIODE, DO-9,1200V,400A
Quick Overview
Manufactured By: WESTCODE
Manufacturer Part Number: SW12PHR400 9923
IMS Product Code: 1811529
Packaging: Sold Individually
Description:
Westcode SW12PHR400 9923 Standard Recovery Diode, DO-9,1200V,400A
Specifications:
- Item Category: Diodes
- Subcategory: Standard Recovery
- Package Type: DO-205AB (DO-9)
- Polarity: Anode Stud (Reverse)
- Vrrm (volts): 1,200 Volts
- IF (rms) Amps: 628 Amps
- IF (avg) Amps: 400 Amps
- Ifsm Amps: 7,500 Amps
- I2T@50Hz (A2Sec): 280,000
- Vfm (volts): 1.62 Volts
- Junction Temp.: -40 to 374 Degrees F
- Mounting Force: 240.4 lbf-inches
- Lead Type: Lug
Request A Quote
Let us know your requirements and an IMS Supply representative will provide you with a detailed quote.
Shipping Times Provided In Quote
