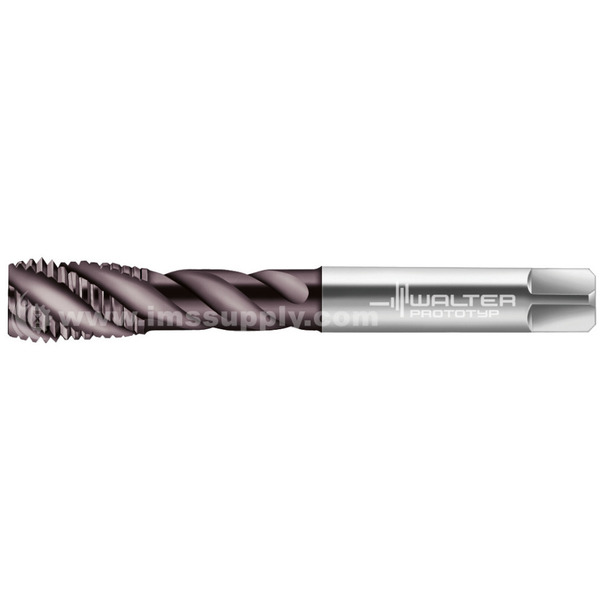

WALTER USA 6245698 TAP SPIRAL 1/8-28 3FL MOD BTM 45 DEGREE HELIX
Quick Overview
Manufactured By: WALTER USA
Manufacturer Part Number: 6245698
IMS Product Code: 1789583
Packaging: Sold Individually
Description:
Walter Usa 6245698 Tap Spiral 1/8-28 3Fl Mod Btm 45 Degree Helix For Blind Holes Ep2456302-G1/8
Specifications:
| Description | Symbol | Value |
| Thread size | DN-P | G 1/8-28 |
| Thread size | DN | 9.72 mm |
| Threads per inch | Threads per inch | 28.00 |
| Functional length | l1 | 90.00 mm |
| Cutting edge length | Lc | 12.00 mm |
| Useable length | l3 | 67.00 mm |
| Connection diameter | d1 | 7.00 mm |
| clamping width | ⃞ | 5.50 mm |
| Driving square length | l9 | 8.00 mm |
| Number of grooves | N | 3.00 |
