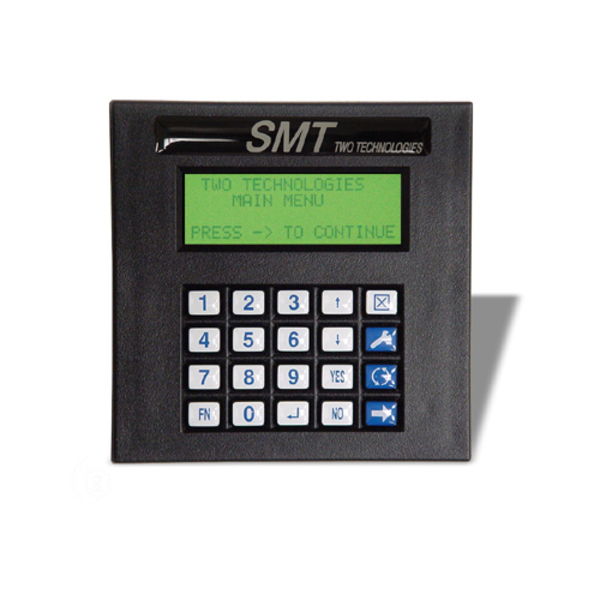

TWO TECHNOLOGIES SMTNELR4-2 SMT SERIES PANEL MOUNT TERMINAL
Starting At: $306.75
Quick Overview
Manufactured By: TWO TECHNOLOGIES
Manufacturer Part Number: SMTNELR4-2
IMS Product Code: 1790836
Packaging: Sold Individually
Description:
Two Technologies SMTNELR4-2 SMT Series Panel Mount Terminal, Supertwist Backlit, 20 Key Keypad Membrane, RS-422, 7.5 to 12V, Black
The SMT Series is line of ASCII terminals for use with computers, properly equipped instruments and industrial machinery. The SMT can be mounted permanently or as a detachable unit.
Custom configurations and special options available, including: Custom Default Settings, Displays, Keypad Graphics, I/O Interface, Firmware, Case Color and Logo Tag
Three (3) year warranty included.
Display
- Reflective/Transreflective Liquid Crystal Display
- 4 Row x 20 Character Display Format
- Standard Character Set: US ASCII (5 x 7 pixels). Latin1 and European Character Sets Also Available as an Option.
- Dark Characters on Light Background (except VFD)
- Optional Super Twist, Supertwist Backlit, Extended Temperature Supertwist Backlit, VFD and Extended Temperature VFD available.
Keys & Switches
- Type: Membrane
- Layouts: 20-key
- Feedback: Tactile and Audible
- Four Programmable: Function Keys
- Optional Backlit and Backlit Phosphorescent Keypads available
Power
- Power Voltage: 7.5 to 12V (Maximum Voltage Depends on Current Draw) Linear Regulator
- Current: 45-50 mA Typical (Some Options Will Require Additional Current)
Interface
- Type: RS-422
- Handshaking: 2 Lines (DTR, DTS) for RS-232, CMOS/LSTTL
- Data Rates: 110 to 9,600
- Parity Range: Even, Odd, Mark, Space and None
- Control Bits: 1 Start and 1-2 Stop Bits
- Standard Interface Connector: 6 Pin Female Modular Connector
Environment
- Nematic Displays
- Storage Temp: -20°C to +70°C
- Operating Temp: 0° to + 50°C
- Extended Temp: -20°C to +70°C
- Vacuum Fluorescent Displays
- Storage Temp: -20° to + 70°C
- Operating Temp: -20° to + 70°C
- Extended Temp: -40° to + 85°C
- Humidity 5-95% (Non-Condensing)
- NEMA 4/12- Panel Mounted (Using Supplied Hardware)
User Selectable Options
• Baud
• Data Bits
• Parity
• Display PE
• Repeat
• Handshake
• Echo
• Self-Test
Custom Options
• Default Settings
• Displays • Keypad Graphics
• I/O Interface
• Firmware
• Case Color
• Logo Tag
Certifications
• FCC Class A
• CE (standard configuration)
• CENELEC EN 55022
• CISPR Class A
• EN 50082.1
• EN 60950
Features
• Panel Mount (Multiple mounting options)
• Programmable Function Keys (single character)
• Membrane or Elastomeric Keypad
• 20 Key Standard Keypad
• Parameter Setup
• Up to 9,600 bps Communication
• NEMA 4/12
• Optional VT-100/ANSI 3.64 Compatibility
• Height: 4.9 Inches (124 mm)
• Width: 4.9 Inches (124 mm)
• Depth w/Cover: 1.3 inches (33 mm)
• Depth w/o Cover: 1.1 inches (28 mm)
• Weight: 12 Ounces (340 grams)
• Case Front: Valox 420
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 14 to 28 Days
