TSUBAKI C2062HRB SMALL PITCH CONVEYOR CHAIN
Quick Overview
Manufactured By: TSUBAKI
Manufacturer Part Number: C2062HRB
IMS Product Code: 1791277
Packaging: Sold Individually
Description:

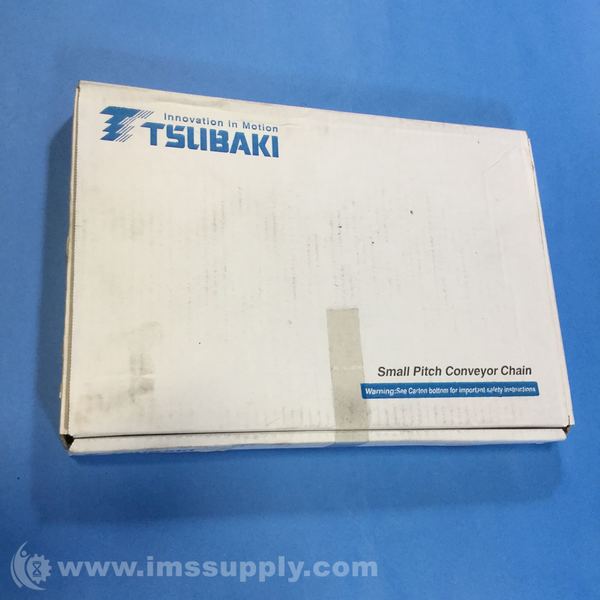

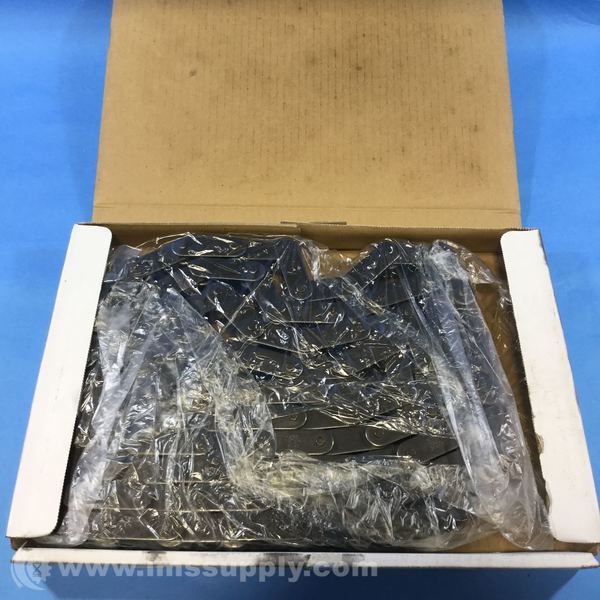

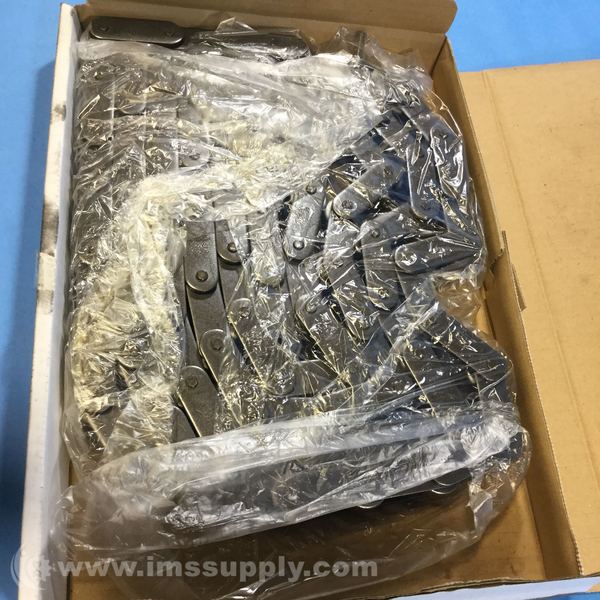

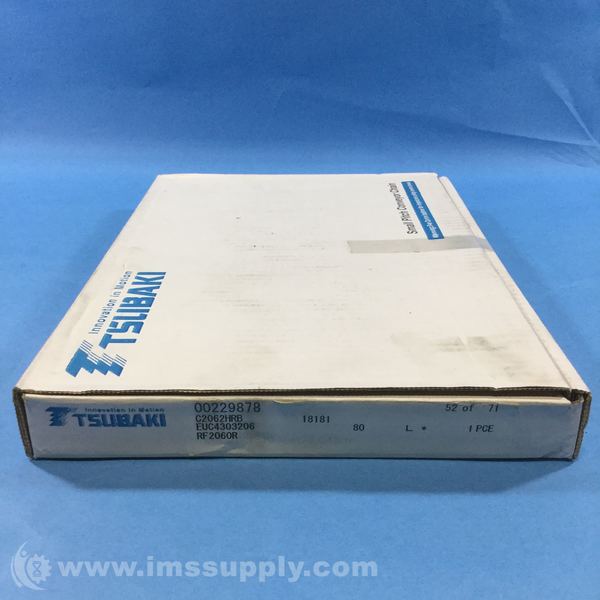

Tsubaki C2062HRB Small Pitch Conveyor Chain
Specifications:
- Overall Width: 1.225"
- Standards: American National Standards Institute (ANSI)
- Roller Link Plate Height: 0.677"
- Temp. Range: 15 Degrees to 300 Degrees F
- ANSI Chain Size: C2062H
- Lubrication: SAE 10 to SAE 50
- Pin Type: Riveted
- Roller Bushing Width: 0.500"
- Chain Type: Conveyor
- Pin Length: 1.225"
- Length: 10 ft.
- Max. Allowable Load: 1410 lb.
- Outside Pin Dia.: 0.234"
- Includes: (1) Connecting Link
- Pin Link Plate Thickness: 0.125"
- Number of Strands: Single
- Tensile Strength: 9040 lb.
- Rivet End to Center Line: 0.573"
- Steel
- Roller Dia.: 0.875"
- Connecting End to Center Line: 0.652"
- Pitch: 1-1/2"
