TSUBAKI 6018 F 1-1/2 CHAIN COUPLING HUB
Quick Overview
Manufactured By: TSUBAKI
Manufacturer Part Number: 6018 F 1-1/2
IMS Product Code: 1792153
Packaging: Sold Individually
Description:

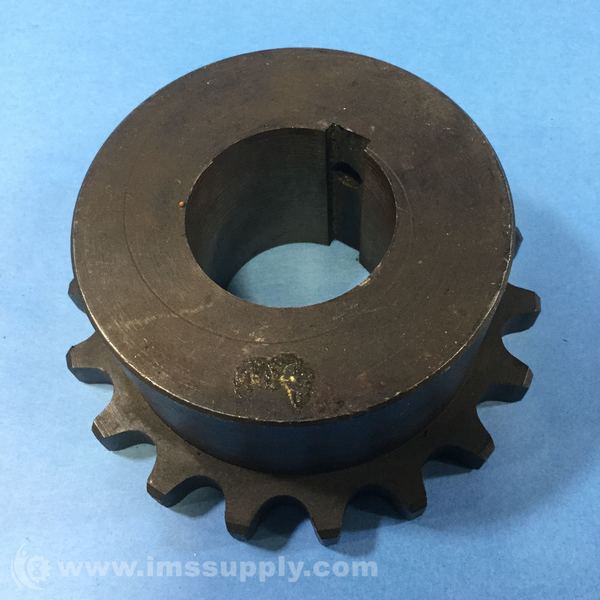

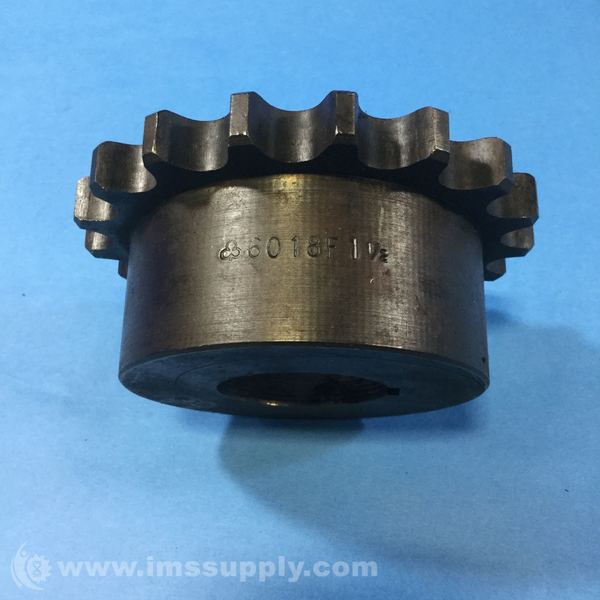

Tsubaki 6018 F 1-1/2 Chain Coupling Hub
Specifications:
- Chain Number: 60
- Number of Teeth: 18
- Bore Type: Finished w/Keyway & SS
- Bore Diameter: 1.5"
- Outside Diameter: 5"
- Hub Diameter: 3-1/2"
- Hub Length: 4-3/16"
- Length Between Sprockets: 7/16"
- Bushing Installation Type: Hub Side
- Set Screw Type: Two At 90° From Keyway
- Maximum RPM: 2500 RPM
- Keyway Size: 3/8 x 3/16"
