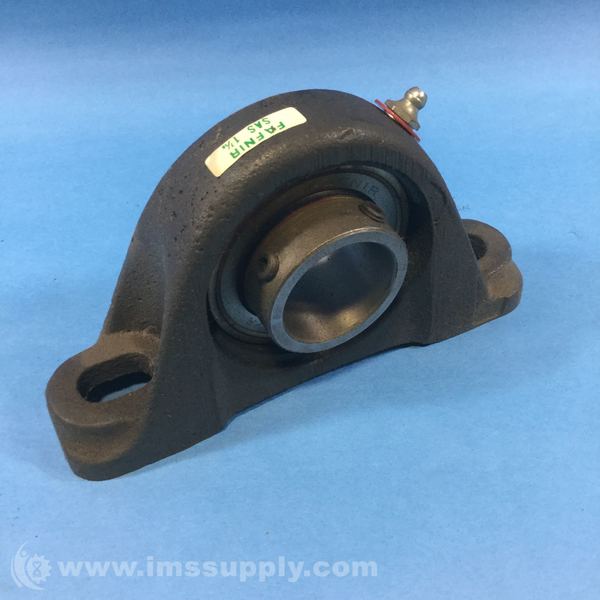

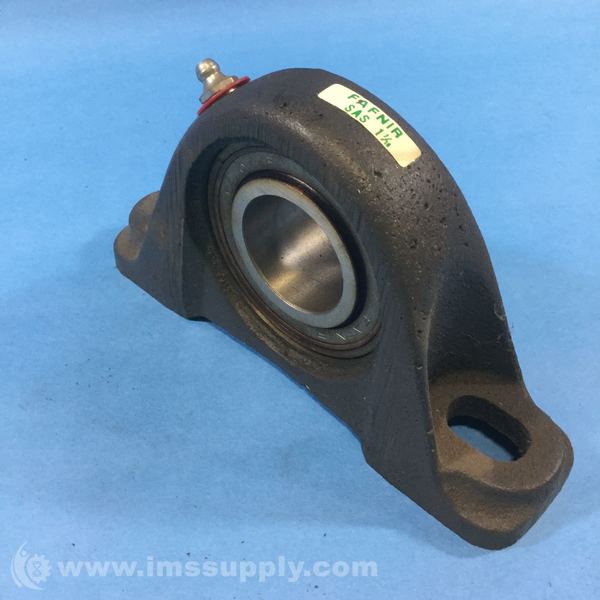

TIMKEN SAS 1-7/16 FAFNIR PILLOW BLOCK UNITS SETSCREW
Starting At: $28.75
Quick Overview
Manufactured By: TIMKEN
Manufacturer Part Number: SAS 1-7/16
IMS Product Code: 1791573
Packaging: Sold Individually
Description:
Timken SAS 1-7/16 Fafnir Pillow Block Units Setscrew
Specifications:
- Shaft Size d: 1 7/16 in36.5 mm
- Bearing Type: Ball Bearing
- Bearing Number: GYA107RRB
- Inside Ring Outside Diameter: 1.854 in47.1 mm
- Dimension T: 0.890 in22.6 mm
- Dimension D1: 1.843 in46.8 mm
- Series: Standard
- Weight: 3.351 lb1.52 Kg
- Seal Type: Narrow Shroud
- Housing Style: Two-Bolt Pillow Block
Dimensions:
- Base to Center Height H: 47.62 mm1.875 in
- Total Length L: 166.7 mm6.563 in
- Total Width A: 1.780 in45.2 mm
- Bolt Hole Spacing J: 130.2 mm5.126 in
- Bolt Hole Width N: 14.3 mm0.563 in
- Bolt Hole Length N1: 24.6 mm0.969 in
- Foot Height H1: 18.3 mm0.720 in
- Total Height H2: 93.6 mm3.685 in
- Dimension L1: 55.6 mm2.189 in
- Inside Ring Width B: N/A
- Center of Bearing from End S:10.7 mm0.421 in
- Dimension B1: 1.437 in36.5 mm
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 7 hours and 56 minutes.
