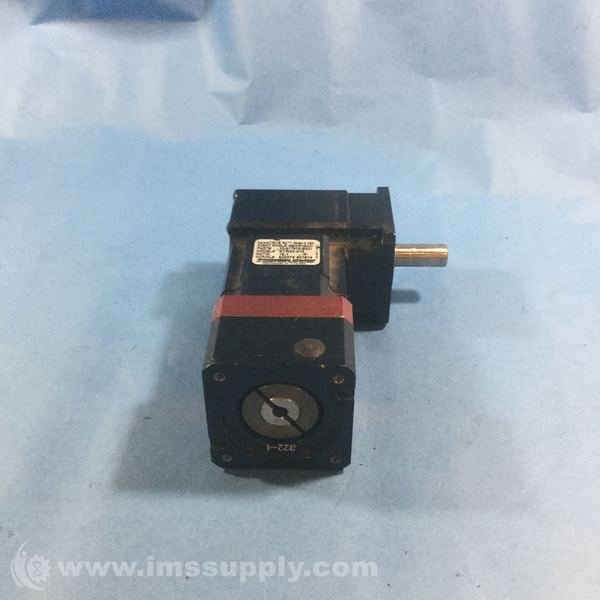

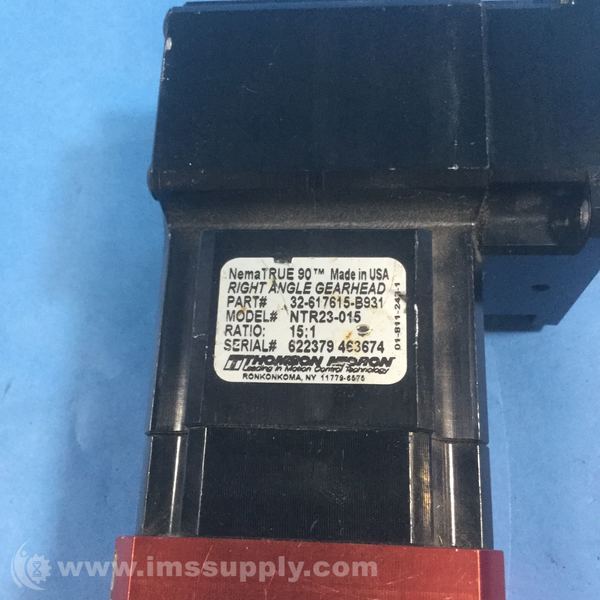

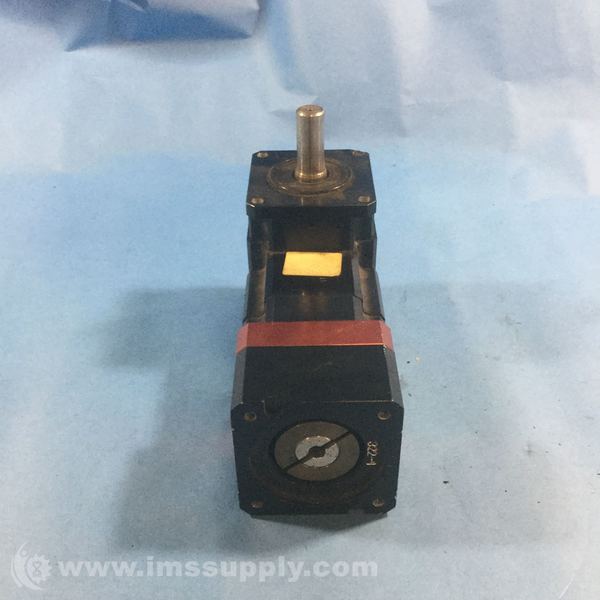

THOMSON MICRON NTR23-015 GEARHEAD, TRUE PLANETARY, NEMATRUE
Quick Overview
Manufactured By: THOMSON MICRON
Manufacturer Part Number: NTR23-015
IMS Product Code: 1810583
Packaging: Sold Individually
Description:
Thomson Micron NTR23-015 Gearhead, True Planetary, NemaTRUE, Size 23, 15:1 Ratio, 15 arc-minutes Backlash, Spur gearing, Single, Right Angle Stainless Steel Output Shaft, Anodized Aluminum Housing
Specifications:
- Backlash: 15 arc-minutes
- Bolt Tightening Torque - Final: 4.4 Nm
- Bolt Tightening Torque - Pre: 0.2 Nm
- Duty: Cyclical Duty
- Flange Square: 60 mm
- Helical Crowned: Spur gearing
- Housing Material: Anodized Aluminum
- inline, Right angle: Right Angle
- Material: Stainless Steel Output Shaft, Anodized Aluminum Housing
- Ratio :1: 15
- RPM Maximum, Input: 5000 RPM
- RPM Maximum, Output: 333 RPM
- Shaft - Single/Dual/Hollow: Single
- Shaft material: Stainless Steel Output Shaft
- Washdown Compatible: No
- Weight: 3.4 lb
