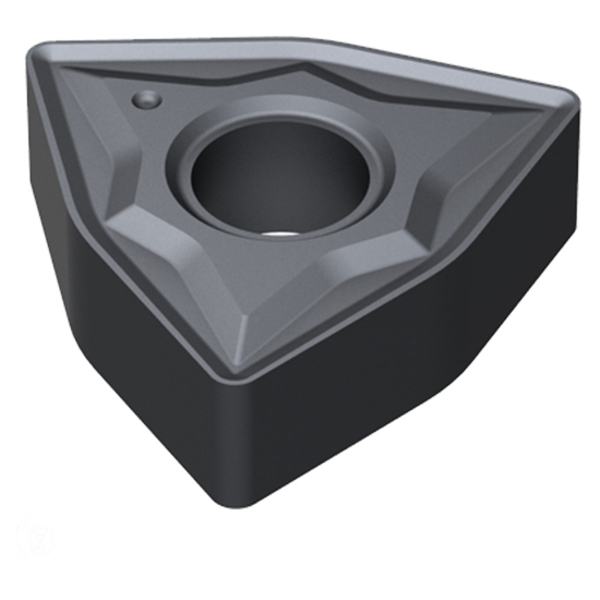

TECHNIKS 4608023 WNMG432NM-LT1000 INSERT
Starting At: $14.25
Quick Overview
Manufactured By: TECHNIKS
Manufacturer Part Number: 4608023
IMS Product Code: 1778213
Packaging: Sold Individually
Description:
Techniks 4608023 WNMG432NM-LT1000 Insert, (ISO) WNMG 080408 With .031" Corner Radius First Choice Turning Chip Breaker for extreme roughing of alloy steel and cast iron
Specifications:
- Designation: WNMG432NM-LT1000
- UNSPSC Code: 23242105
- Grade: LT1000
- Chip Breaker: NM
- IC: 0.5
- Thickness: 0.187
- Radius: 0.031
- Chamfer Width: N/A
- Height: N/A
- Length: N/A
- Holder Angle: N/A
- Min. Bore DIA.: N/A
- Cutting Diameter: N/A
- Arbor or Shank Diameter: N/A
- Shank Length: N/A
- Aspect Ration: N/A
- Material: Carbide
- Coating: PVD Tialn-Magia
- Holding System: N/A
- Gauge Insert: N/A
- Gauge Insert (external): N/A
- Gauge Insert (internal): N/A
- Chip Breaker Function: R
- IPR (min): 0.004
- IPR (max): 0.026
- DOC (min): 0.02
- DOC (max): 0.197
- IPT (min): N/A
- IPT (max): N/A
- Cutter or Shank: N/A
- Shank Style: N/A
- Max Ap (DOC): N/A
- Cutter Approach Angle: N/A
- Coolant Thru: N/A
- Number of Teeth: N/A
- Internal or External: N/A
- Weight Per Piece: 0.25
- Qty Per Box: 10
- Clamp: N/A
- Clamp Screw: N/A
- Shim: N/A
- Shim Screw: N/A
- Wrench: N/A
- Shim Pin: N/A
- Screw: N/A
- Lever: N/A
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 7 to 21 Days
