TECHNIKS 31278 HSK 32A X ER 20 - 80
Starting At: $393.30
Quick Overview
Manufactured By: TECHNIKS
Manufacturer Part Number: 31278
IMS Product Code: 1777526
Packaging: Sold Individually
Description:

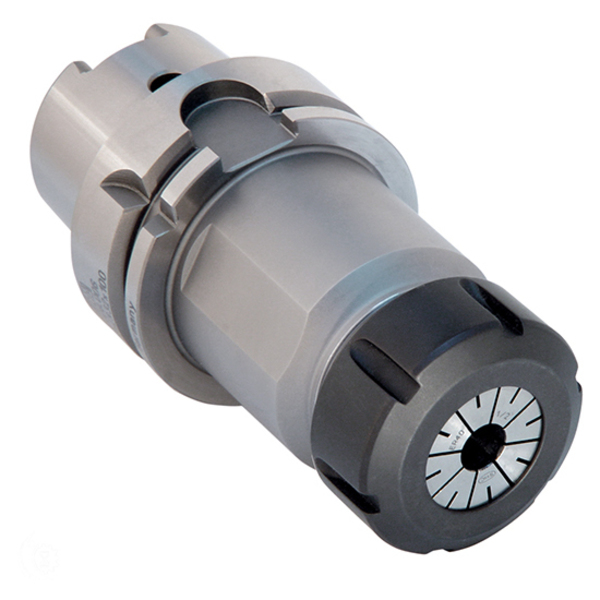

Techniks 31278 HSK 32A x ER 20 - 80
Specifications:
- UNSPSC Code: 27112807
- Collet Series: ER20
- Body Dia-Workpiece Side (in): 1.339
- Body Dia-Workpiece Side (mm): 34
- Gage Length (in); 3.15
- Gage Length (mm): 80
- Gage Length-Face Contact (in): 3.15
- Gage Length-Face Contact (mm): 80
- Lock Nut Diameter (in): 1.38
- Lock Nut Diameter (mm): 35.1
- Overall Length (in): 3.78
- Overall Length (mm): 96
- Material: 8620 Steel
- Taper: HSK32A
- Overall Diameter (in): 1.26
- Overall Diameter (mm): 32
- Unit of Tool: Metric or Inch
- Type: Taper Shank Collet Chuck
- Style: Single Ended
- Capacity Range (in): 0.019" - 0.55"
- Capacity Range (mm): 0.5 - 14mm
- Balanced to 25,000 RPM at G2.5
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 7 to 21 Days
