TECHNIKS 30002-C-P HSK 63F X ER 40 - 90 W/COOLANT PIPE
Quick Overview
Manufactured By: TECHNIKS
Manufacturer Part Number: 30002-C-P
IMS Product Code: 1777680
Packaging: Sold Individually
Description:

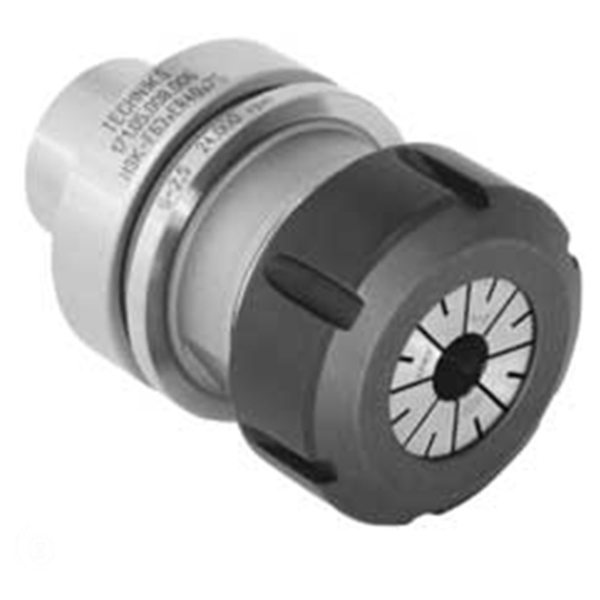

Techniks 30002-C-P HSK 63F x ER 40 - 90 w/Coolant Pipe
Specifications:
- UNSPSC Code: 27112807
- Collet Series: ER40
- Body Dia-Workpiece Side (in): 2.48
- Body Dia-Workpiece Side (mm): 63
- Gage Length (in): 3.54
- Gage Length (mm): 90
- Gage Length-Face Contact (in): 3.54
- Gage Length-Face Contact (mm): 90
- Lock Nut Diameter (in): 2.48
- Lock Nut Diameter (mm): 63
- Overall Length (in): 4.52
- Overall Length (mm): 114.8
- Material: 8620 Steel
- Taper: HSK63F
- Overall Diameter (in): 2.48
- Overall Diameter (mm): 63
- Unit of Tool: Metric or Inch
- Type: Taper Shank Collet Chuck
- Style: Single Ended
- Capacity Range (in): 0.086" - 1.02"
- Capacity Range (mm): 2.2 - 26mm
- Balanced to 25,000 RPM at G2.5
