TECHNIKS 25.122.40.080 SBT 30 X ER 40 - 80MM DUALDRIVE
Starting At: $431.30
Quick Overview
Manufactured By: TECHNIKS
Manufacturer Part Number: 25.122.40.080
IMS Product Code: 1779625
Packaging: Sold Individually
Description:

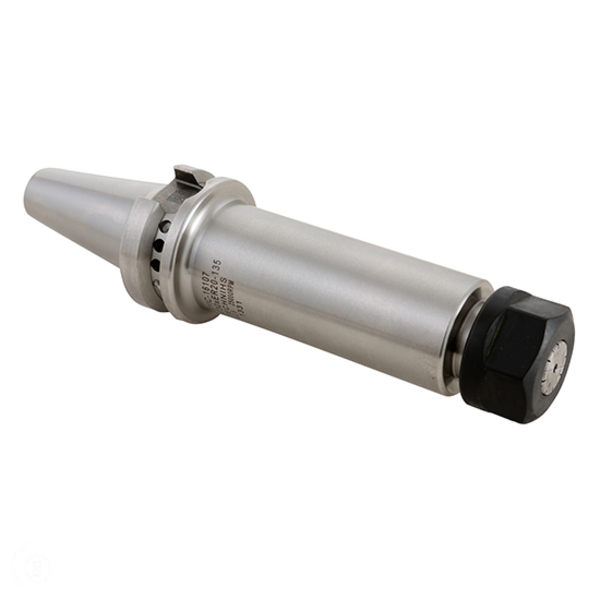

Techniks 25.122.40.080 SBT 30 x ER 40 - 80mm DualDRIVE
Specifications:
- UNSPSC Code: 27112807
- Collet Series: ER40
- Body Dia-Workpiece Side (in): 2.48
- Body Dia-Workpiece Side (mm): 63
- Gage Length (in): 3.15
- Gage Length (mm): 80
- Gage Length-Face Contact (in): 3.07
- Gage Length-Face Contact (mm): 78
- Lock Nut Diameter (in): 2.48
- Lock Nut Diameter (mm): 63
- Overall Length (in): 5.05
- Overall Length (mm): 128.3
- Material: 8620 Steel
- Taper: BT30
- Overall Diameter (in): 1.81
- Overall Diameter (mm): 46
- Unit of Tool: Metric or Inch
- Type: DualDRIVE Collet Chuck
- Style: Single Ended DualDRIVE
- Capacity Range (in): 0.086" - 1.02"
- Capacity Range (mm): 2.2 - 26mm
- Balanced to: 25,000 RPM at G2.5
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 7 to 21 Days
