TECHNIKS 25.122.32.060 SBT 30 X ER 32 - 60MM DUALDRIVE
Starting At: $371.45
Quick Overview
Manufactured By: TECHNIKS
Manufacturer Part Number: 25.122.32.060
IMS Product Code: 1779627
Packaging: Sold Individually
Description:

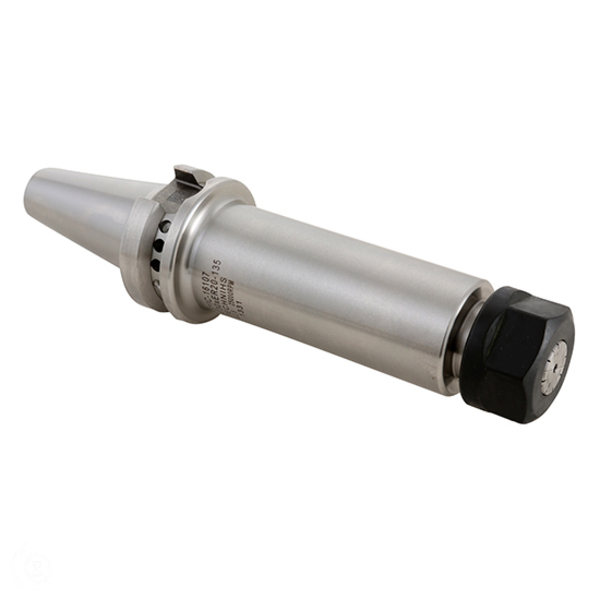

Techniks 25.122.32.060 SBT 30 x ER 32 - 60mm DualDRIVE
Specifications:
- UNSPSC Code: 27112807
- Collet Series: ER32
- Body Dia-Workpiece Side (in): 1.969
- Body Dia-Workpiece Side (mm): 50
- Gage Length (in): 2.36
- Gage Length (mm): 60
- Gage Length-Face Contact (in): 2.28
- Gage Length-Face Contact (mm): 58
- Lock Nut Diameter (in): 1.97
- Lock Nut Diameter (mm): 50
- Overall Length (in): 4.26
- Overall Length (mm): 108.2
- Material: 8620 Steel
- Taper: BT30
- Overall Diameter (in): 1.81
- Overall Diameter (mm): 46
- Unit of Tool: Metric or Inch
- Type: DualDRIVE Collet Chuck
- Style: Single Ended DualDRIVE
- Capacity Range (in): 0.043" - 0.83"
- Capacity Range (mm): 1.1 - 21mm
- Balanced to: 25,000 RPM at G2.5
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 7 to 21 Days
