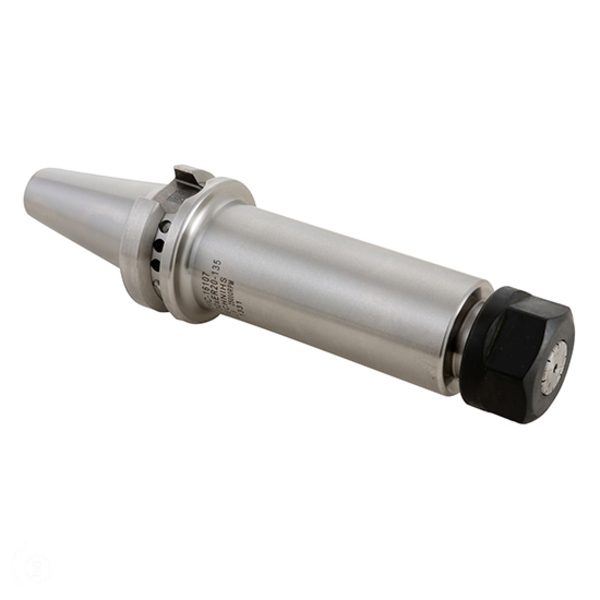

TECHNIKS 25.122.25.060 SBT 30 X ER 25 - 60MM DUALDRIVE
Starting At: $356.25
Quick Overview
Manufactured By: TECHNIKS
Manufacturer Part Number: 25.122.25.060
IMS Product Code: 1779632
Packaging: Sold Individually
Description:
Techniks 25.122.25.060 SBT 30 x ER 25 - 60mm DualDrive
Specifications:
- UNSPSC Code: 27112807
- Collet Series: ER25
- Body Dia-Workpiece Side (in): 1.654
- Body Dia-Workpiece Side (mm): 42
- Gage Length (in): 2.36
- Gage Length (mm): 60
- Gage Length-Face Contact (in): 2.28
- Gage Length-Face Contact (mm): 58
- Lock Nut Diameter (in): 1.65
- Lock Nut Diameter (mm): 41.9
- Overall Length (in): 4.26
- Overall Length (mm): 108.2
- Material: 8620 Steel
- Taper: BT30
- Overall Diameter (in): 1.81
- Overall Diameter (mm): 46
- Unit of Tool: Metric or Inch
- Type: DualDRIVE Collet Chuck
- Style: Single Ended DualDRIVE
- Capacity Range (in): 0.039" - 0.75"
- Capacity Range (mm): 1 - 19.1mm
- Balanced to: 25,000 RPM at G2.5
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 7 to 21 Days
