TECHNIKS 25.122.20.090 SBT 30 X ER 20 - 90MM DUALDRIVE
Starting At: $289.75
Quick Overview
Manufactured By: TECHNIKS
Manufacturer Part Number: 25.122.20.090
IMS Product Code: 1779636
Packaging: Sold Individually
Description:

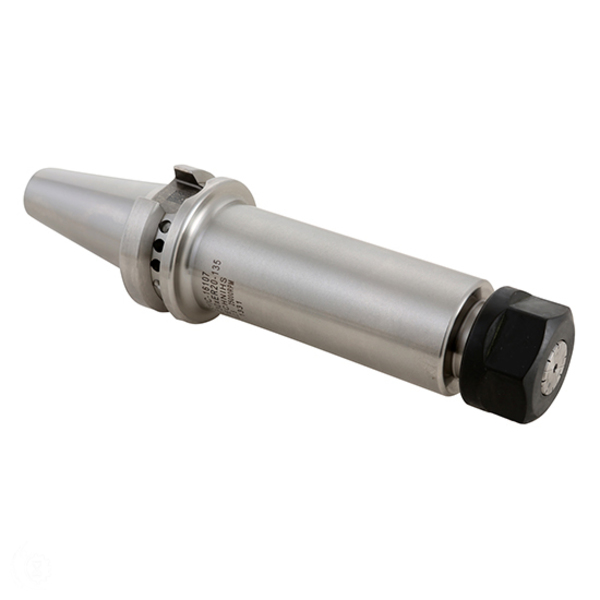

Techniks 25.122.20.090 SBT 30 x ER 20 - 90mm DualDRIVE
Specifications:
- UNSPSC Code: 27112807
- Collet Series: ER20
- Body Dia-Workpiece Side (in): 1.339
- Body Dia-Workpiece Side (mm): 34
- Gage Length (in): 3.54
- Gage Length (mm): 90
- Gage Length-Face Contact (in): 3.46
- Gage Length-Face Contact (mm): 88
- Lock Nut Diameter (in): 1.38
- Lock Nut Diameter (mm): 35.1
- Overall Length (in): 5.44
- Overall Length (mm): 138.2
- Material: 8620 Steel
- Taper: BT30
- Overall Diameter (in): 1.81
- Overall Diameter (mm): 46
- Unit of Tool: Metric or Inch
- Type: DualDRIVE Collet Chuck
- Style: Single Ended DualDRIVE
- Capacity Range (in): 0.019" - 0.55"
- Capacity Range (mm): 0.5 - 14mm
- Balanced to: 25,000 RPM at G2.5
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 7 to 21 Days
Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
