TECHNIKS 23016 CAT 40 X TG 100 - 4"
Starting At: $138.70
Quick Overview
Manufactured By: TECHNIKS
Manufacturer Part Number: 23016
IMS Product Code: 1780418
Packaging: Sold Individually
Description:

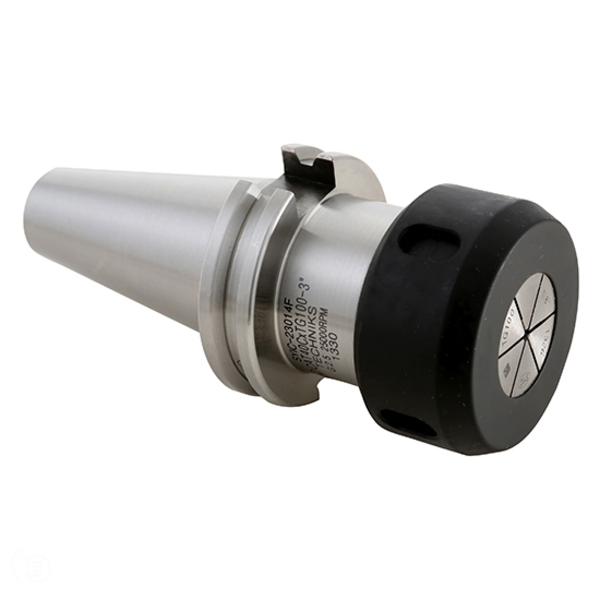

- Techniks 23016 CAT 40 x TG 100 - 4"
- Specifications:
- UNSPSC Code: 27112807
- Collet Series: TG100
- Body Dia-Workpiece Side (in): 2.362
- Body Dia-Workpiece Side (mm): 60
- Gage Length (in): 4
- Gage Length (mm): 101.6
- Gage Length-Face Contact (in): 3.87
- Gage Length-Face Contact (mm): 98.4
- Lock Nut Diameter (in): 2.35
- Lock Nut Diameter (mm): 59.7
- Overall Length (in): 6.68
- Overall Length (mm): 169.7
- Material: 8620 Steel
- Taper: CAT40
- Overall Diameter (in): 2.5
- Overall Diameter (mm): 63.5
- Unit of Tool: Metric or Inch
- Type: V-Flange Collet Chuck
- Style: Single Ended
- Capacity Range (in): 0.094" - 1"
- Capacity Range (mm): 2.4 - 25.4mm
- Balanced to: 25,000 RPM at G2.5
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 7 to 21 Days
