TECHNIKS 22327F CAT 50 X ER 40 - 8 WITH COOLFLEX
Starting At: $349.60
Quick Overview
Manufactured By: TECHNIKS
Manufacturer Part Number: 22327F
IMS Product Code: 1782683
Packaging: Sold Individually
Description:

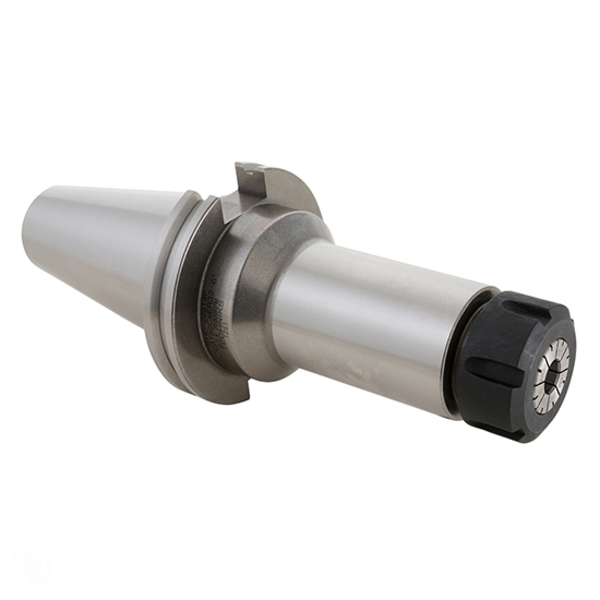

Techniks 22327F CAT 50 x ER 40 - 8 with CoolFLEX
Specifications:
- UNSPSC Code: 27112807
- Collet Series: ER40
- Body Dia-Workpiece Side (in): 2.48
- Body Dia-Workpiece Side (mm): 63
- Gage Length (in): 8
- Gage Length (mm): 203.2
- Gage Length-Face Contact (in): 7.87
- Gage Length-Face Contact (mm): 199.8
- Lock Nut Diameter (in): 2.48
- Lock Nut Diameter (mm): 63
- Overall Length (in): 12
- Overall Length (mm): 304.8
- Material: 8620 Steel
- Taper: CAT50
- Overall Diameter (in): 3.88
- Overall Diameter (mm): 98.43
- Unit of Tool: Metric or Inch
- Type: V-Flange Collet Chuck
- Style: Single Ended
- Capacity Range (in): 0.086" - 1.02"
- Capacity Range (mm): 2.2 - 26mm
- Balanced to: 25,000 RPM at G2.5
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 7 to 21 Days
