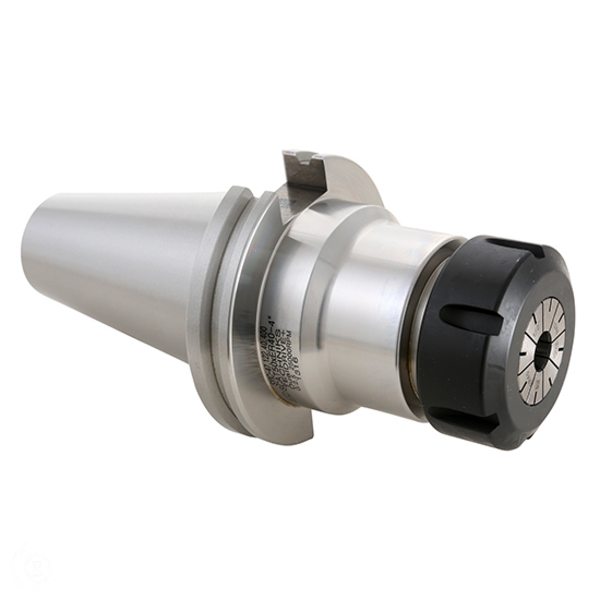

TECHNIKS 22295 CAT 50 X ER 20 - 8
Starting At: $303.05
Quick Overview
Manufactured By: TECHNIKS
Manufacturer Part Number: 22295
IMS Product Code: 1782797
Packaging: Sold Individually
Description:
Techniks 22295 CAT 50 x ER 20 - 8
Specifications:
- UNSPSC Code: 27112807
- Collet Series: ER20
- Body Dia-Workpiece Side (in): 1.339
- Body Dia-Workpiece Side (mm): 34
- Gage Length (in): 8
- Gage Length (mm): 203.2
- Gage Length-Face Contact (in): 7.87
- Gage Length-Face Contact (mm): 199.8
- Lock Nut Diameter (in): 1.38
- Lock Nut Diameter (mm): 35.1
- Overall Length (in): 12
- Overall Length (mm): 304.8
- Material: 8620 Steel
- Taper: CAT50
- Overall Diameter (in): 3.88
- Overall Diameter (mm): 98.43
- Unit of Tool: Metric or Inch
- Type: V-Flange Collet Chuck
- Style: Single Ended
- Capacity Range (in): 0.019" - 0.55"
- Capacity Range (mm): 0.5 - 14mm
- Balanced to: 25,000 RPM at G2.5
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 7 to 21 Days
