TECHNIKS 16102 BT 30 X ER 16 - 60
Starting At: $155.80
Quick Overview
Manufactured By: TECHNIKS
Manufacturer Part Number: 16102
IMS Product Code: 1765145
Packaging: Sold Individually
Description:

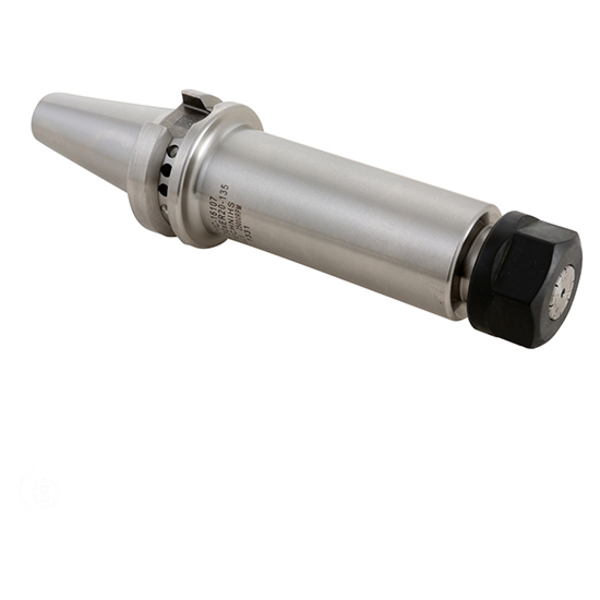

Techniks 16102 BT 30 x ER 16 - 60
Specifications:
- UNSPSC Code: 27112807
- Collet Series: ER16
- Body Dia-Workpiece Side (in): 1.102
- Body Dia-Workpiece Side (mm): 28
- Gage Length (in): 2.36
- Gage Length (mm): 60
- Gage Length-Face Contact (in): 2.28
- Gage Length-Face Contact (mm): 58
- Lock Nut Diameter (in): 1.26
- Lock Nut Diameter (mm): 32
- Overall Length (in): 4.26
- Overall Length (mm): 108.2
- Material: 8620 Steel
- Taper: BT30
- Overall Diameter (in): 1.81
- Overall Diameter (mm): 46
- Unit of Tool: Metric or Inch
- Type: V-Flange Collet Chuck
- Style: Single Ended
- Capacity Range (in): 0.019" - 0.41"
- Capacity Range (mm): 0.5 - 10.5mm
- Balanced to: 25,000 RPM at G2.5
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 7 to 21 Days
