TECHNIKS 04855 1/2 X ER 11A - 140MM
Starting At: $127.30
Quick Overview
Manufactured By: TECHNIKS
Manufacturer Part Number: 04855
IMS Product Code: 1763518
Packaging: Sold Individually
Description:

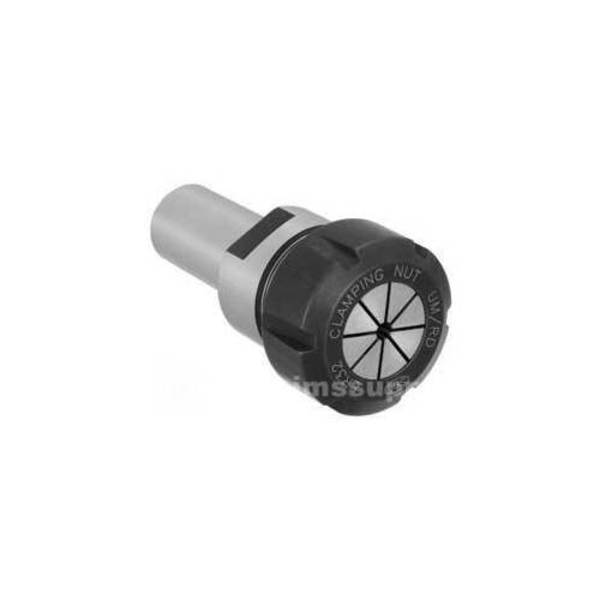

Techniks 04855 1/2 x ER 11A - 140mm
- UNSPSC Code: 27112807
- Collet Series: ER11
- Body Dia-Workpiece Side (in): 0.748
- Body Dia-Workpiece Side (mm): 19
- Gage Length (in): 0.85
- Gage Length (mm): 21.6
- Lock Nut Diameter (in): 0.75
- Lock Nut Diameter (mm): 19.1
- Overall Length (in): 6.17
- Overall Length (mm): 156.7
- Material: 8620 Steel
- Taper: 1/2" Straight Shank
- Overall Diameter (in): 0.5
- Overall Diameter (mm): 12.7
- Unit of Tool: Metric or Inch
- Type: SS Collet Chuck Extension
- Style: Single Ended
- Capacity Range (in): 0.019" - 0.28"
- Capacity Range (mm): 0.5 - 7.1mm
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 7 to 21 Days
