TECHNIKS 04818 C20 X ER32 -100MM
Starting At: $205.20
Quick Overview
Manufactured By: TECHNIKS
Manufacturer Part Number: 04818
IMS Product Code: 1763496
Packaging: Sold Individually
Description:

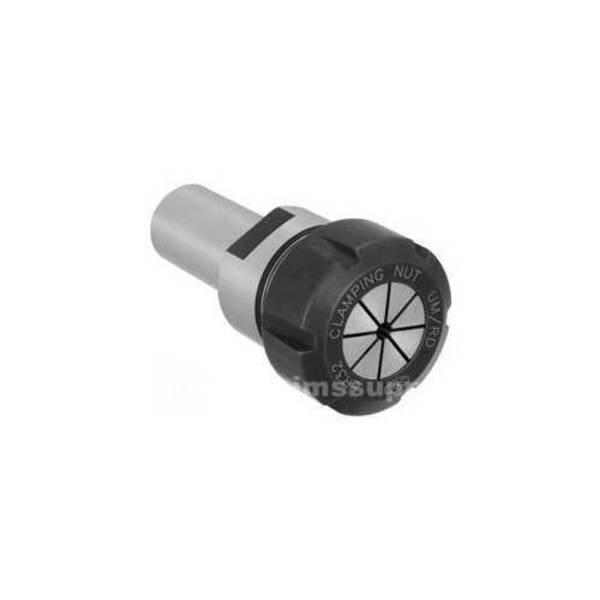

Techniks 04818 C20 x ER32 -100mm
- UNSPSC Code: 27112807
- Collet Series: ER32
- Body Dia-Workpiece Side (in): 1.969
- Body Dia-Workpiece Side (mm): 50
- Gage Length (in): 1.85
- Gage Length (mm): 47
- Lock Nut Diameter (in): 1.97
- Lock Nut Diameter (mm): 50
- Overall Length (in): 5.96
- Overall Length (mm): 151.4
- Material: 8620 Steel
- Taper: 20mm Straight Shank
- Overall Diameter (in): 0.79
- Overall Diameter (mm): 20.07
- Unit of Tool: Metric or Inch
- Type: SS Collet Chuck Extension
- Style: Single Ended
- Capacity Range (in): 0.043" - 0.83"
- Capacity Range (mm): 1.1 - 21mm
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 7 to 21 Days
