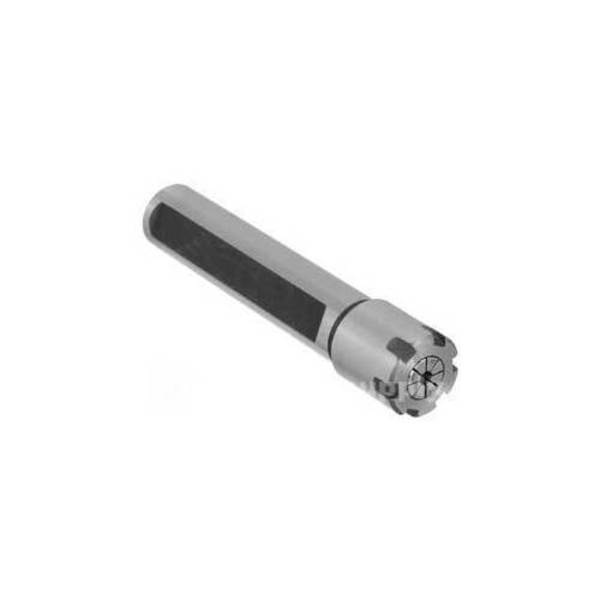

TECHNIKS 04804-DE 3/4" X ER 11M - 5.0" DOUBLE-ENDED
Starting At: $207.10
Quick Overview
Manufactured By: TECHNIKS
Manufacturer Part Number: 04804-DE
IMS Product Code: 1763479
Packaging: Sold Individually
Description:
Techniks 04804-DE 3/4" x ER 11M - 5.0" double-ended
- UNSPSC Code: 27112807
- Collet Series: ER11
- Body Dia-Workpiece Side (in): 0.748
- Body Dia-Workpiece Side (mm): 19
- Gage Length (in): 0.472
- Gage Length (mm): 12
- Lock Nut Diameter (in): 0.75
- Lock Nut Diameter (mm): 19.1
- Overall Length (in): 4.67
- Overall Length (mm): 118.6
- Material: 8620 Steel
- Taper: 3/4" Straight Shank
- Overall Diameter (in): 0.75
- Overall Diameter (mm): 19.05
- Unit of Tool: Metric or Inch
- Type: SS Collet Chuck
- Style: Double Ended
- Capacity Range (in): 0.019" - 0.28"
- Capacity Range (mm): 0.5 - 7.1mm
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 7 to 21 Days
