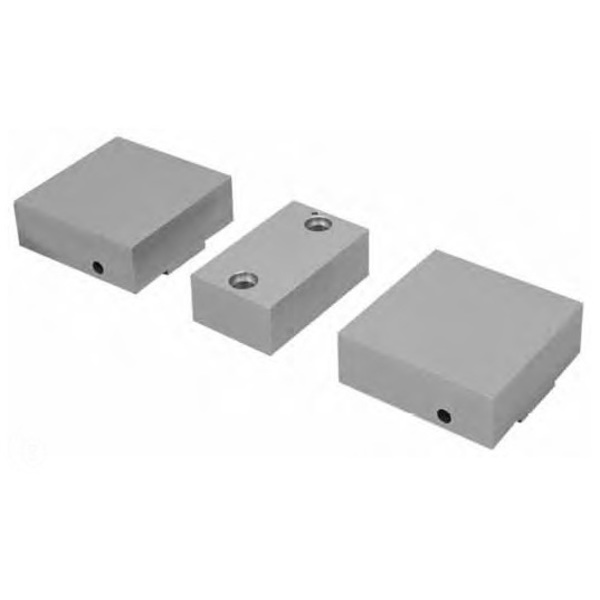

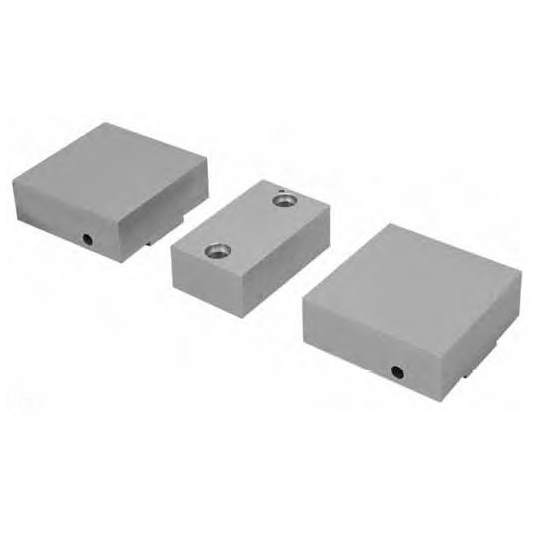

TE-CO SSJ8023 SNAPLOCK MACHINABLE FIXTURE JAW - CENTER PIECE
Quick Overview
Manufactured By: TE-CO
Manufacturer Part Number: SSJ8023
IMS Product Code: 1922373
Packaging: Sold Individually
Description:
TE-CO SSJ8023 SnapLock Machinable Fixture Jaw - Center Piece
- Manufactured from high quality aluminum, steel, and 4140 steel.
- Jaws are reversible for additional work piece set-up.
- SnapLock jaws are to be used with the ReLock system only.
Specifications:
- Model Compatibility: RWS8008, RWS8002
- Vise Size: 8 in
- Type: Center
- Style: Standard

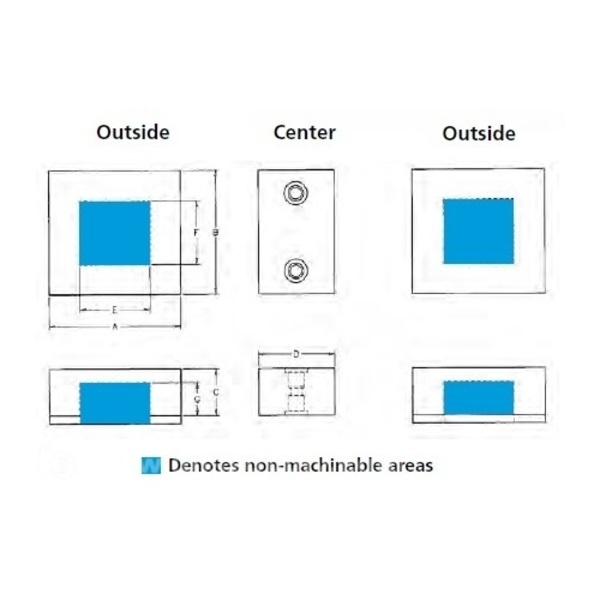

- Total Length (B): 7.940 in
- Total Height (C): 2.500 in
- Total Width (D): 4.500 in
- E: 3.125 in
- F: 2 5/8 in
- G: 1.500 in
- Bolt Hole Spacing: 5.875 in
- Thread Length: 0.750 in
- Counterbore Diameter: 1.000 in
- Counterbore Depth: 1.100 in
- Material: 4140 Steel
- Bolt Hole Diameter: 0.687 in
- Weight: 23.95 lb
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
