TE-CO SSJ6321 SNAPLOCK MACHINABLE 1018 STEEL FIXTURE JAW
Quick Overview
Manufactured By: TE-CO
Manufacturer Part Number: SSJ6321
IMS Product Code: 1922376
Packaging: Sold Individually
Description:

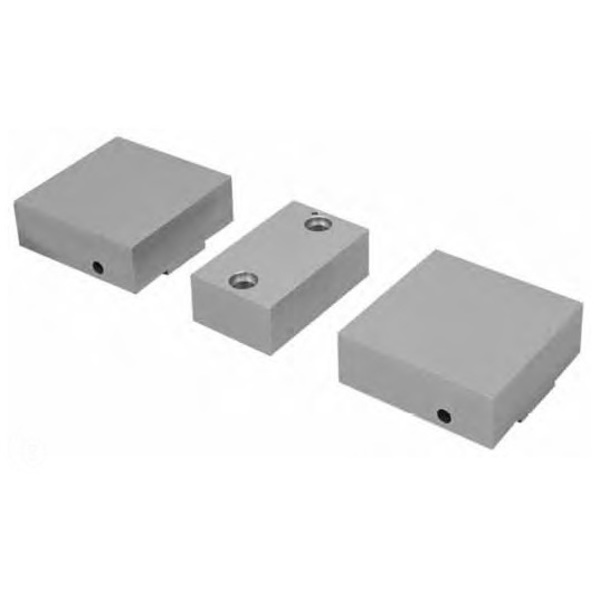

TE-CO SSJ6321 SnapLock Machinable 1018 Steel Fixture Jaw - Center Piece
- Manufactured from high quality aluminum, steel, and 4140 steel.
- Jaws are reversible for additional work piece set-up.
- SnapLock jaws are to be used with the ReLock system only.
Specifications:
- Model Compatibility: RWS6008, RWS6002
- Vise Size: 6 in
- Type: Center
- Style: Tall

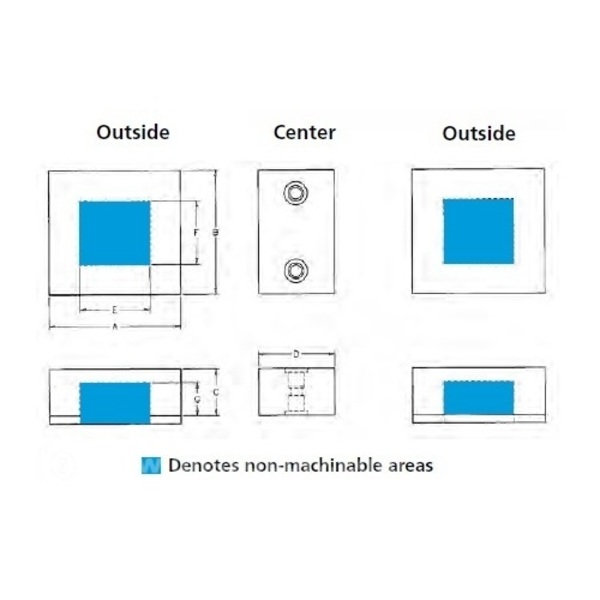

- Total Length (B): 5.940 in
- Total Height (C): 3.250 in
- Total Width (D): 3.500 in
- E: 3.063 in
- F: 2.810 in
- G: 1.280 in
- Bolt Hole Spacing: 4.375 in
- Thread Length: 0.750 in
- Counterbore Diameter: 0.781 in
- Counterbore Depth: 0.840 in
- Material: 1018 Steel
- Bolt Hole Diameter: 0.531 in
- Weight: 18.43 lb
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
