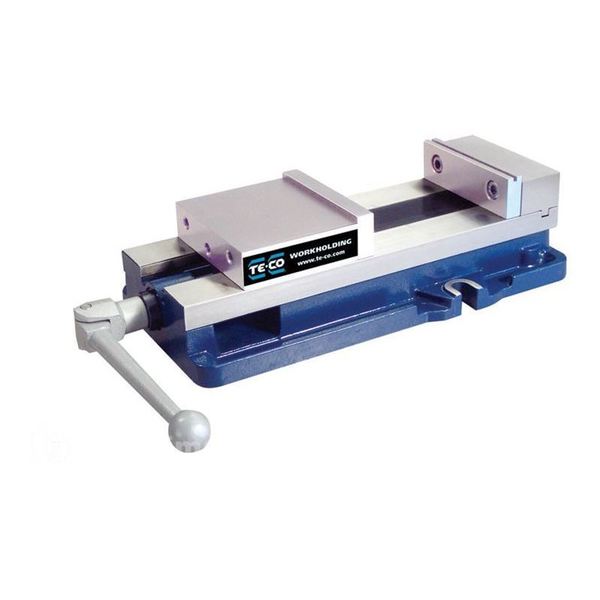

TE-CO PWS-4600 4" SINGLE STATION PARLEC VISE
Quick Overview
Manufactured By: TE-CO
Manufacturer Part Number: PWS-4600
IMS Product Code: 1922497
Packaging: Sold Individually
Description:
TE-CO PWS-4600 4" Single Station Parlec Vise
Featuring the largest opening in its class of six inches and a more robust main screw
that can handle higher torque loads and transmit higher clamping pressure.
The angled slide and locking jaw design prevents lifting of the moveable jaw.
Specifications:
- Type: Single Station
- Style: Machinable Jaws
- Clamping Pressure: 7000 lb
- Jaw Opening: 6.000 in
- Jaw Width: 4.000 in
- Total Length: 14.22 in
- Total Width: 6.30 in
- Total Height: 3.63 in
- Material: Ductile Iron
- Weight: 33 lb
- A: 2.25 in
- E: 0.59 in
- G: 0.500 in
- Features:
- Powder coated paint resists flaking and peeling
- 80,000psi ductile iron body with increased nickel content for improved corrosion resistance
- Hardened vise bed and jaw plates
- Sealed and lubricated needle roller thrust bearing for maximum life and minimum torque
- Up to 7000 lbs. of clamping force
- Repeatability within .001"
- Outside rails of body are machined within 0.0005" square to jaw
- Bed height matched to size 2.250" +/- 0.0005"
- Footprint and distance from the keyway to stationary jaw meets industry standard
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
