TE-CO HWS4202 TOOLEX RELOCK DOUBLE ACTING VISE
Quick Overview
Manufactured By: TE-CO
Manufacturer Part Number: HWS4202
IMS Product Code: 1922501
Packaging: Sold Individually
Description:

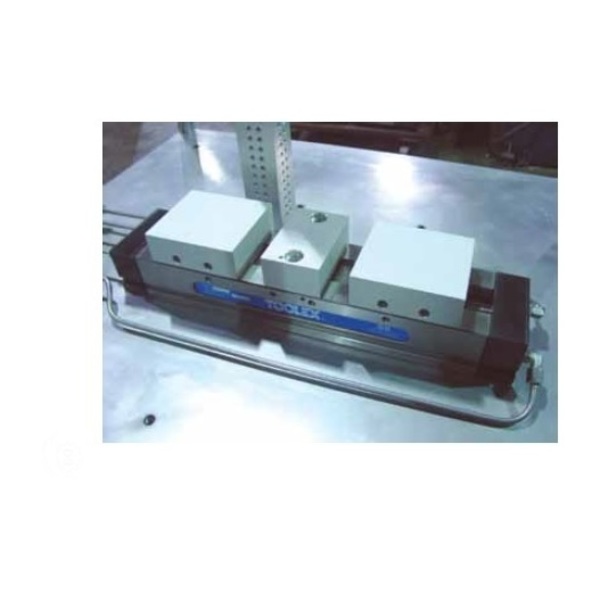

TE-CO HWS4202 Toolex Relock Double Acting Vise
Designed for:
- Automation applications
- Robotic applications
- Lights-out manufacturing
- Each station clamps and can be controlled independently.
- Can be interfaced with machine controls or PLC.
- Hydraulic system allows consistent and controlled clamping pressures.
- Existing manual Toolex double station vises can be easily converted to hydraulics.
- Maximum Clamping Pressure = 5,900 lbs at 5,000 PSI (hydraulic), 1.18 square inches effective piston area.
Specifications:
- Type: Vise
- Clamping Pressure: 5000 lb

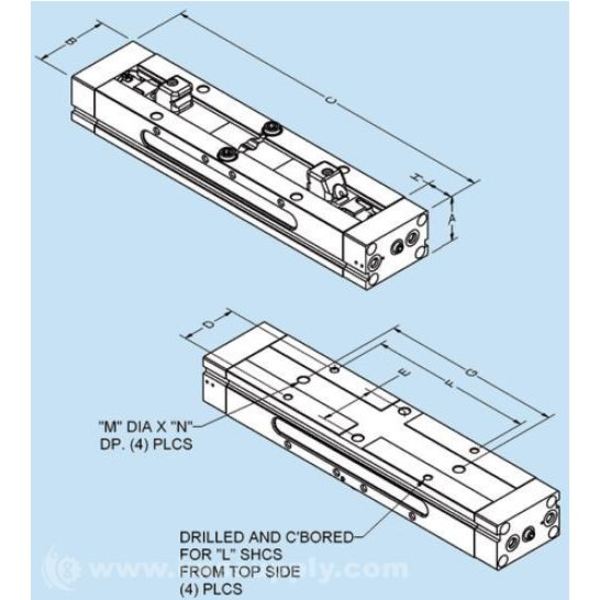

- Total Height (A): 2.500 in
- Total Width (B): 4.000 in
- Total Length (C): 18.910 in
- Hole Spacing - Across (D): 3.000 in
- Hole Spacing - Across (E): 3.000 in
- Hole Spacing (F): 9.000 in
- Hole Spacing (G): 10.000 in
- Acting Length (H): 1.460 in
- Screw Size (L): 5/16-18
- Tolerance A: ± 0.0005
- Tolerance B: + 0.000 /- 0.002
- Tolerance E: ± 0.001
- Vise Capacity - Machinable Jaw: 3.250 in6.000 in
- Vise Capacity - Carrier and Hard Jaw: 2.125 in6.500 in
- Material: 4140 Hardened Steel
- Slot Size: 1.503 in
- Style: Compact Vise
- Features and Benefits:
- SnapLock® knuckle system allows quick change of top jaws. Angle notch eliminates jaw deflection.
- SnapLock® jaw system, available in machinable aluminum, 1018 steel and 4140 steel. Also available in extra tall and extra wide sizes.
- Accepts SnapLock® carrier jaw system for hard jaw set-ups
- Accepts AccuSnap® and QuickChange parallel systems.
- Thru body and side slot mounting.
- Cast iron body for maximum rigidity and accuracy.
- Telescoping three-piece chip shield assembly provides maximum protection to the internal mechanisms. Eliminates chips and debris from entering the segment screw.
