TE-CO 69507X SPRING PLUNGERS - PIN STYLE - SLOTTED SS BODY - SS N
Quick Overview
Manufactured By: TE-CO
Manufacturer Part Number: 69507X
IMS Product Code: 1922570
Packaging: Sold Individually
Description:

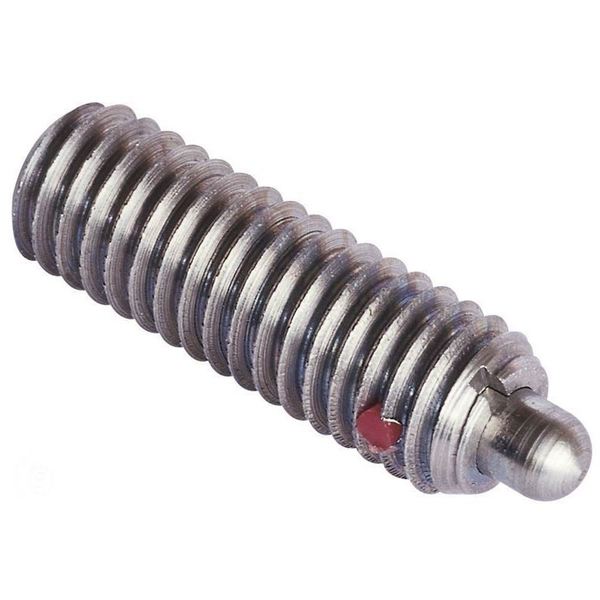

TE-CO 69507X Spring Plungers - Pin Style - Slotted SS Body - SS Nose
Specifications:
- Finish: Black Oxide
- Nose Material: Steel
- Initial End Force: 45.0 N
- Final End Force: 100.0 N

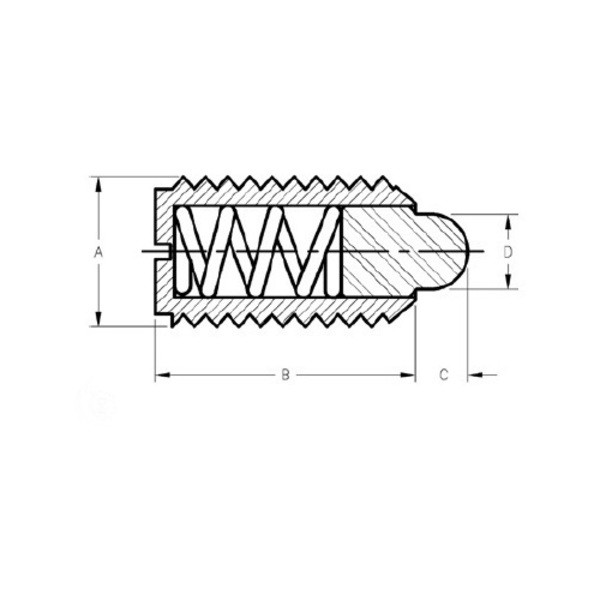

- Thread Size (A): M16
- Body Length (B): 24.00 mm
- Projection Size (C): 4.50 mm
- Nose Diameter (D): 8.50 mm
- Body/Plunger Material: 300 series stainless steel
- Locking Element: No
- Type: Spring Plunger
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
